LS VISION H.265 Face Recognition 4 Channel NVR with one Sata Supports 4CH POE Ports P2P Mobile Phone View

FOB Reference Price:Get Latest Price
  • 1 - 49 Pieces
    $72.70
  • >=50 Pieces
    $68.40
Lead Time:
Quantity(Pieces) 1 - 20 21 - 100 101 - 200 >200
Est. Time(days) 7 12 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-NF5104P
Product name:
H.265 4CH POE Face Recognition NVR
Access bandwidth:
32M
Video Output:
CVBS, VGA, HDMI
IP Resolution:
Up to 1920*2048
Video Decoding:
H.265/ H.264
Face Detection:
support 1CH
switch for 3mp camera:
4CH 3mp@20fps(8Mbps)/ 4CH 3mp playback
POE port:
4CH (IEEE 802.3af)
HDD:
1 Sata
RJ45:
One port
Supply Ability
Supply Ability:
6000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard packing
Port
EXW-SHENZHEN
Lead Time :
Quantity(Pieces) 1 - 20 21 - 100 101 - 200 >200
Est. Time(days) 7 12 20 To be negotiated
Product Description

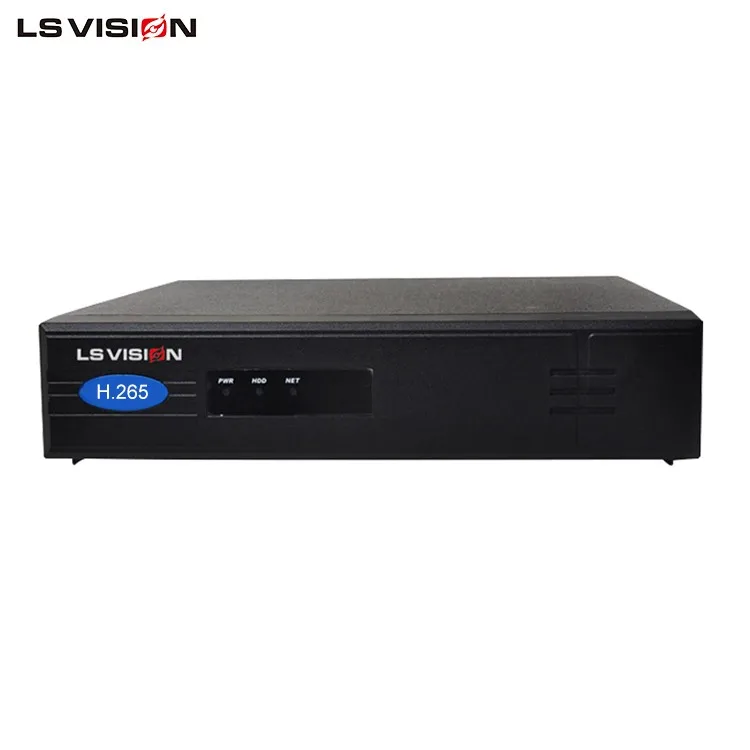

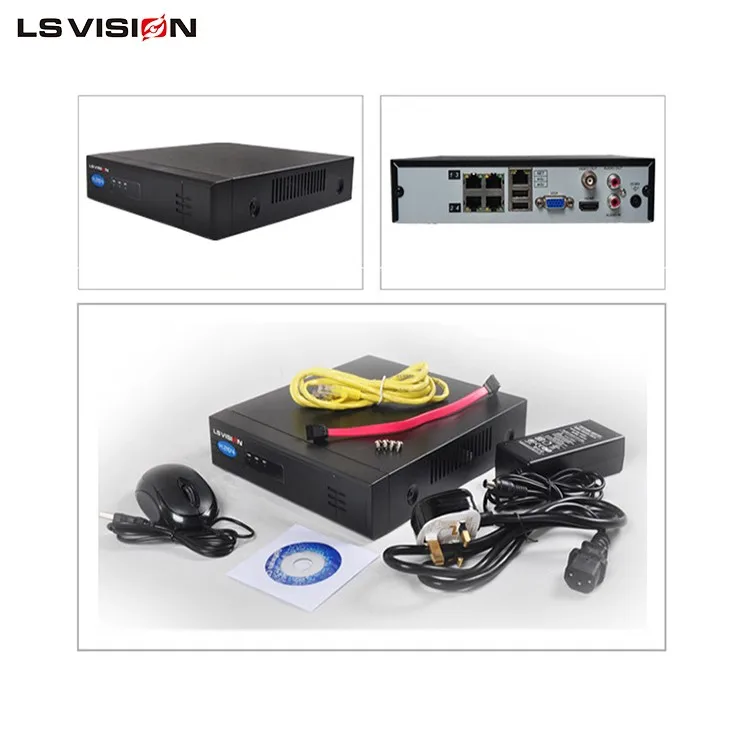

H.265 4CH POE Face Recognition NVR


H.265 compression

Access capability 1 - 5 megapixel ip camera

Built in 4CH POE ports

Support ONVIF 2.4

Support 1 SATA

Full HDMI output, support HDMI, VGA, CVBS synchronization output


Plug and play
Support P2P function
1 SATA HDD capacity; 2 USB 2.0 Interfaces

Support 1CH face detection; 1CH boundary analysis


Specification
Module
LS-NF5104P Face Recognition NVR
OS
Embedded Linux
Master chip
Hi3798M
Video Copression
H.265
Access Bandwidth
32M
Bidirectional Talk
1 CH(Line in,2Vpp,1Kohms)
Audio Output
1CH,BNC(Line out,2Vpp,300ohms)
IP Resolution
Main stream:up to 5632x4224
Sub stream: no more than D1
Synchronous Playback
Up to 4CH
Bidirectional Talk
Two-way voice intercom function
Motion Detection
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Intelligent features
1CH face detection, 1ch boundary analysis (optional)
Network Interface
1 RJ45 10M/100M/1000M adaptive Ethernet interface
POE ports
4CH POE port (IEEE 802.3af)
HDD
Support 1 SATA
Weight
1.7.0 Kg(without HDD)
Power Supply
DC 48V /1.35A
Working Temperature
 -10℃--+55℃
Working Humidity
10%--90%
Consumption
7W(without HDD, with out POE)
Friendly CMS


How to do the connection of LS VISION POE NVR ?

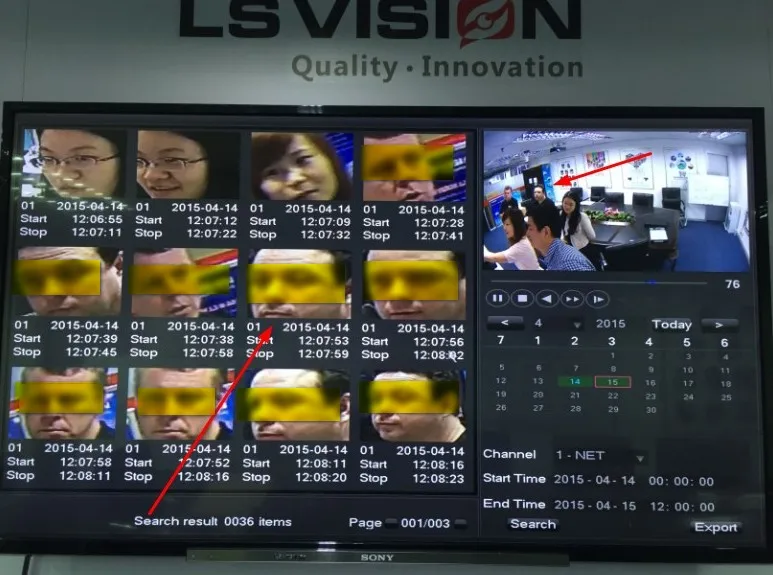

How to use face detect function ?

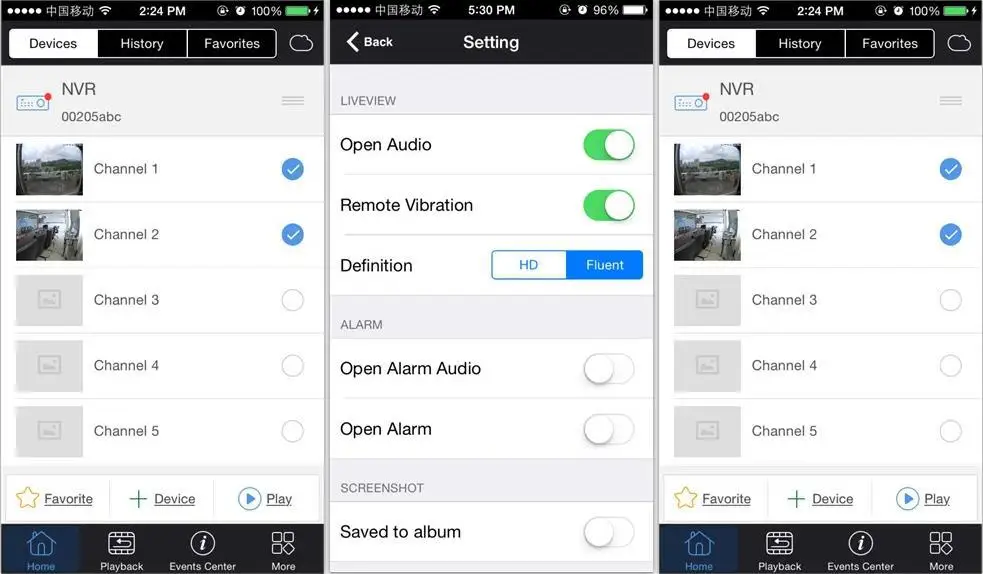

Mobile P2P
