LS VISION Smart NVR POE Ports Cloud Storage P2P Onvif H.265 4CH Network Video Recorder

FOB Reference Price:Get Latest Price
  • 1 - 99 Pieces
    $72.70
  • >=100 Pieces
    $68.40
Lead Time:
Quantity(Pieces) 1 - 20 21 - 100 101 - 200 >200
Est. Time(days) 7 12 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-NF5104P
Type:
Hi3798M, H.265 NVR 4CH POE
Access bandwidth:
32M
Video Output:
CVBS, VGA, HDMI
IP Resolution:
Up to 1920*2048
Video Decoding:
H.265/ H.264
Face Detection:
support 1CH
POE port:
4CH (IEEE 802.3af)
HDD:
1 Sata
RJ45:
One port
Onvif:
Support
Supply Ability
Supply Ability:
30000 Piece/Pieces per Week NVR H.265
Packaging & Delivery
Packaging Details
410*293*60mm
Color Box
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 20 21 - 100 101 - 200 >200
Est. Time(days) 7 12 20 To be negotiated
Video Description
Key Features

LS VISION Smart NVR POE Ports Cloud Storage P2P Onvif H.265 4CH Network Video Recorder

1, H.264/H.265 High performance and industrial-grade SOC chip with low power
consumption and steady system. Triple watchdog circuit protection system ensures no crashes phenomenon.
2, With embedded Linux system, a 16-bit colored image enhancement technology, a consummate UI operation interface style.
3, Support ONVIF 2.4 protocol.
4, Full HDMI output, support HDMI, VGA, CVBS synchronization output.
5, With hard disk dormancy and Wake-on-LAN technology, which lower power consumption, improve the stability and prolong the hard disk life.
6, With hard disk S.M.A.R.T management technology; capacity is unlimited and health status of hard disk can be monitored at any time.
7, Hard disk dual redundant technology with data backup effectively ensures video security.
8, Network QOS automatically adjusting the code flow and network transmission strategy ensures the Network transmission reliability.

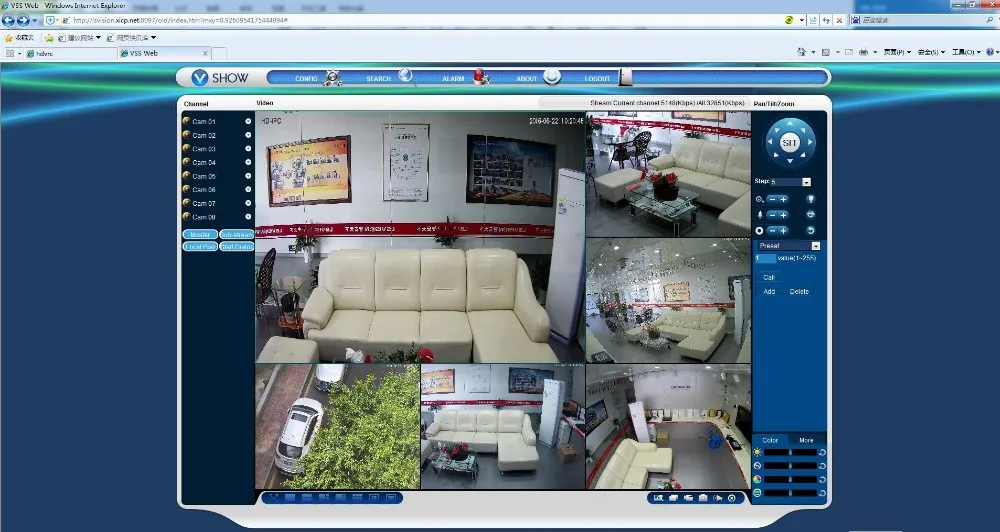

9, Plug and play, support P2P function, cloud services and cloud storage is provided.

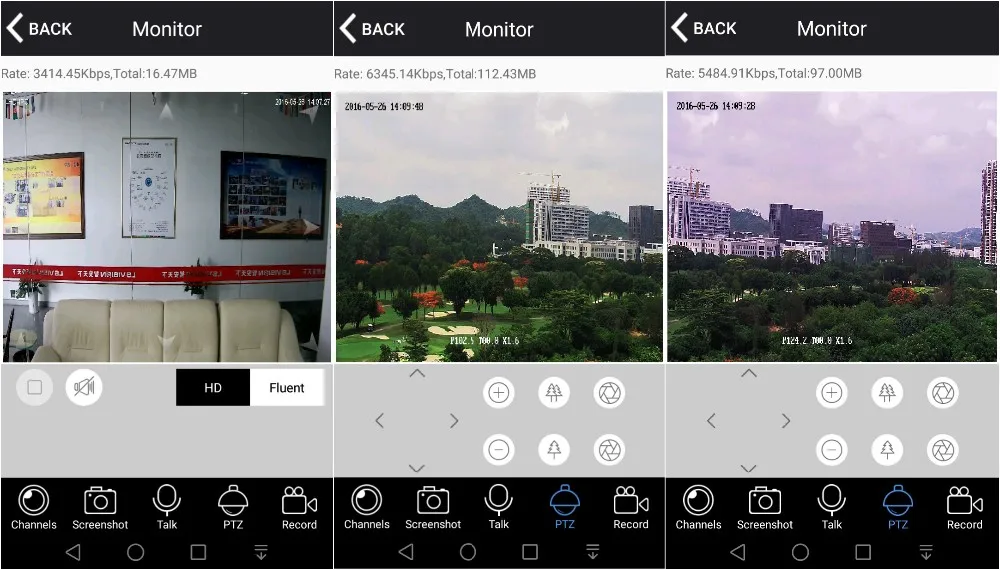

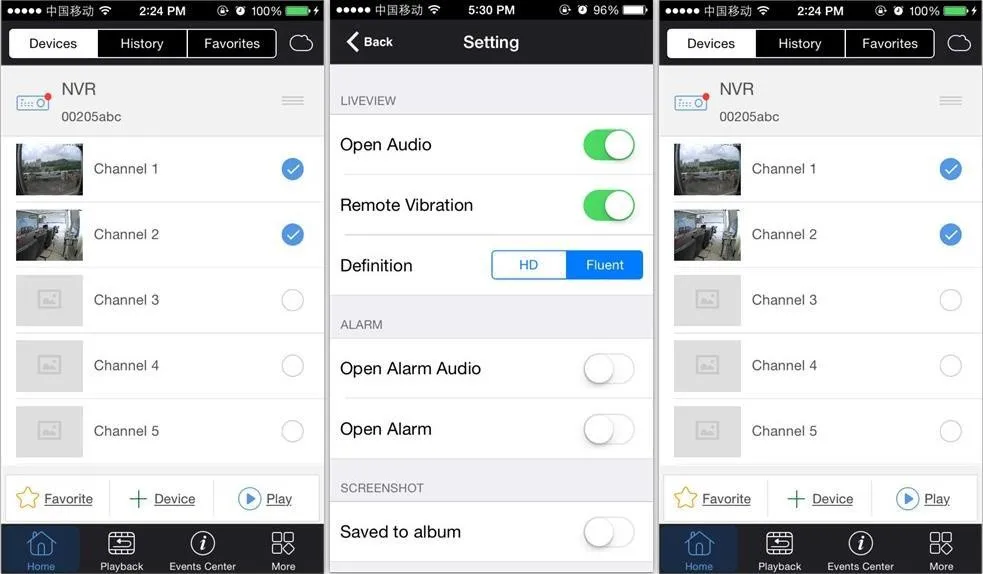

10, Supports Iphone、Windows Mobile、Symbian、Andriod、Blackberry
11, 4ch POE port built-in

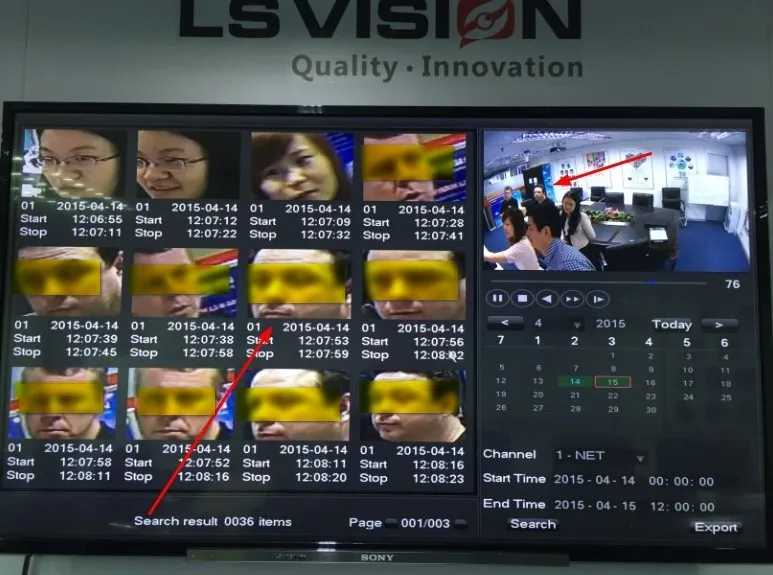

12, Intelligent features: 1CH face detection, 1ch boundary analysis

Product Interface
Specification
Model
LS-NF5104P
OS
Embedded Linux
master chip
Hi3798M
Access Bandwidth
32M
Bidirectional Talk
1 CH(Line in,2Vpp,1Kohms)
IPC Input
(Up to 4CH 1080P@8M)
CVBS Output
1CH,BNC(1.0Vp-p,75ohms)
VGA
1CH,1920×1080,1280×1024,1280×720,1024×768
HDMI
Standard 1.4a
DNR
3840×2160,1920×1080,1280×1024,1280×720,1024×768
Audio Output
1CH,BNC(Line out,2Vpp,300ohms)
Audio Compression
G711A
Audio Bit Rate
64Kbps

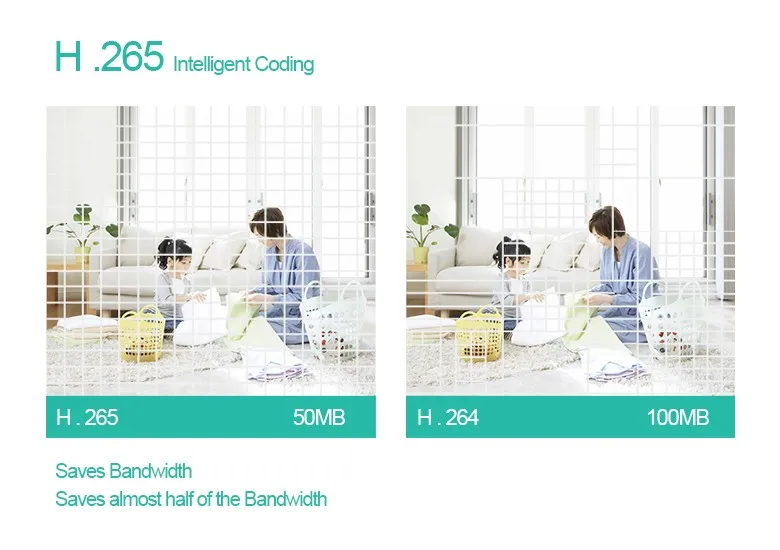

Video decoding
H.265/H.264
Bidirectional Talk
Two-way voice intercom function
Motion Detection
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Picture Capture
Local Capture&Web Capture
SATA
1
ESATA
0
POE interface
4ch POE -RJ-45 10/100 Mbps self-adaptive Ethernet interface
Network Interface
1 RJ45 10M/100M/1000M adaptive Ethernet interface
USB
2 USB 2.0 Interfaces
Dimensions
410*293*60mm
Weight
1.7Kg(without HDD)
Power Supply
DC 48V /1.35A
Working Temperature
-10℃--+55℃
Working Humidity
10%--90%
Consumption
7W(without HDD and POE)
