LSVISION 4MP Outdoor IP66 Motion Detection WDR Network Sony Dome CCTV Waterproof IPC Camera

FOB Reference Price:Get Latest Price
$50.70 - $54.10 / Piece | 1 Piece/Pieces camera waterproof (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LSVISION
Model Number:
LS-ND5402DV
Type:
IP Camera
Style:
Dome Camera
Sensor:
CMOS
Special Features:
Waterproof / Weatherproof
Product name:
IP66 sony ipc camera waterproof
Main chip:
MSC316DM+OV4689
Image Sensor:
1/3" OV4689 CMOS Sensor
Min IIIumination:
0.1Lux F1.2(AGC ON), 0Lux IR on
IR Distance:
20 meters
Lens:
2.8-12mm Varifocal lens
Day&Night mode:
Auto/Color/(B/W)/Timing
White Balance:
Auto/Indoor/Outdoor
DNR:
2D/3D DNR
Effective Pixels:
2592(H)*1520 (V)
Technology:
NetWork
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month camera waterproof
Packaging & Delivery
Packaging Details
standard carton
camera waterproof
Port
shenzhen
Lead Time :
Shipped in 7 days after payment
Video Description
Product Description

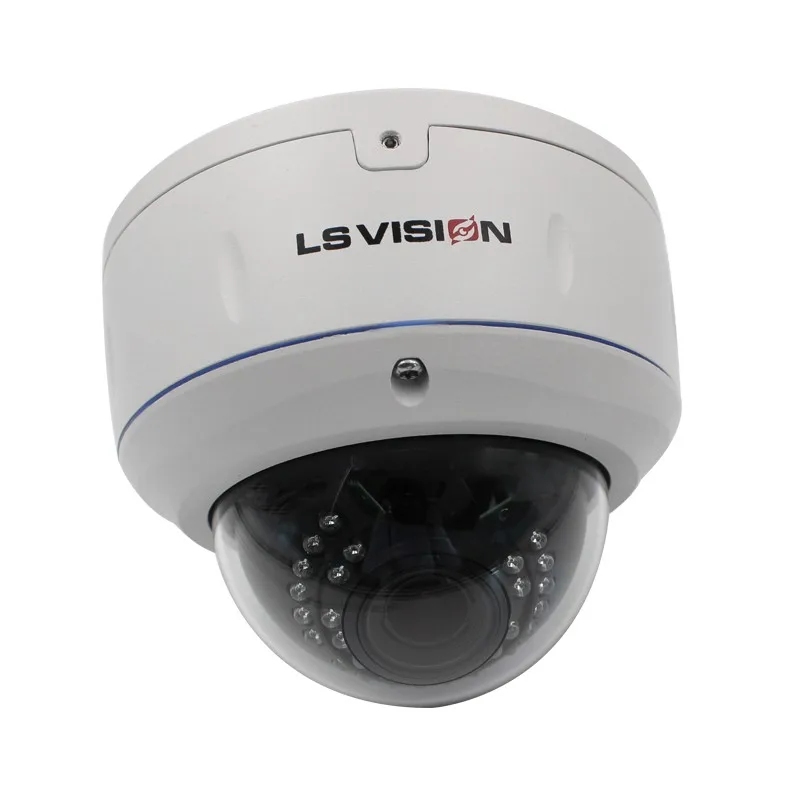

LSVISION 4MP Outdoor IP66 Motion Detection WDR Network Sony Dome CCTV Waterproof IPC Camera


Key Features:


1.1/3" UHD CMOS sensor

2.Max. 4MP resolution 2560*1440

3.low illumination 0.1Lux

4.Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT

5.D-WDR, Motion Detection, Privacy Mask, Mirror, rotate

6.RTSP and Onvif 2.4 compatible

7.H.265/H.264 dual-stream media server

8.Easy-to-use P2P Cloud service

9.Multi web browser, PC Client, mobile APP remote access

10.Optional customization Lens/Audio/ POE, etc.


11.Lightning protection 4000V

12.Strong water-proof housing, IP66

13.30pcs IR Leds, IR distance 20 meters


14.2.8-12mm varifocal Lens

Specification
Model
LS-ND5402DV Varifocal Lens CCTV Security Sony IPC Camera Waterproof
Camera
Image Sensor
1/3" OV4689 CMOS Sensor
Effective Pixels
2592(H)×1520 (V)
Electronic Shutter
AUTO, 1/25s ~ 1/100000s
Min. Illumination
0.1Lux@ F1.2(AGC ON), 0Lux IR on
Day/Night
Auto/Color/(B/W)/Timing
WDR
Digital WDR
White Balance
Auto
AGC/BLC
Support
DNR
2D/3D DNR
Other
Embedded Solution
Msc316dm
Video Standard
H.265/H.264
Video Resolution
Main Stream:20fps@4MP(2592x1520),30fps@3MP/1080P/720P                                Sub Stream: VGA(640x480)/360P/QVGA@25fps, etc.
Video Bitrates
32Kbps - 8Mbps, VBR/CBR
Audio Standard
G.711-u/G.711-a, built-in microphone
IR
IR Led
30 pcs IR Leds
IR Distance
20 Meters
Lens
Focal length
2.8-12mm varifocal Lens
Optional Function
Audio, etc.
Network Services
Protocol
HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P
Yes
Web
IE , Firefox, etc.
Media
CMS, Android, IOS
ONVIF
2.6 compatible
General
Network Port
1-RJ45, 100Mbps
Power Supply
Support POE 48V 12 VDC ± 10%
Power Consumption
< 5 W
Operating Temp.
-30℃-(+60)℃, 10%-90%RH
Applications
Other Products

        2mp 4mp IP PTZ Bullet Camera

      2mp Starlight low light IP camera

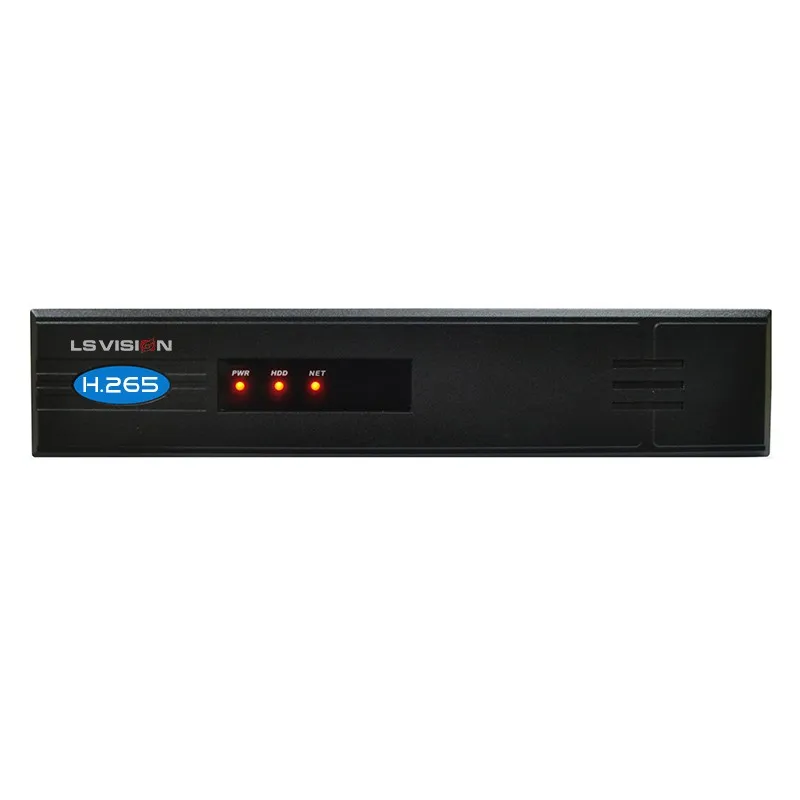

            H.265 2mp Wifi nvr kit

LS VISION Info

Why LS VISION will be your first choice in the market?



LS VISION Technology Co., Ltd. (Own Brand: LS VISION). LS VISION is China No.1 IP Camera professional Supplier for Tough Environment. LS VISION always uphold the corporate culture – “Only for Quality Life” and focused on quality and service. Aim to provide top quality security products, professional service and best customer experience.

LS VISION main product include High Quality IP Camera, HD Network Camera, PTZ Camera, AHD Camera, HD-TVI Camera, AHD DVR, TVI DVR, Hybrid Camera Dvr, HD NVR, and WIFI NVR Kits etc.

LS Vision established since 2012, with fast growing, so far we have 20 engineers R&D team, 20 person sales team and 10 marketing team. LS VISION factory has around 30 workers in production line. and the production capacity can be 15,000pcs in each month. LS Vision's products are widely used in many fields, such as banking, public security, energy infrastructure, telecommunication, intelligent-building, and intelligent-transportation.


Now our team is keeping on research new products, Such as 4K H.265 IP Camera, Starlight IP Camera, 360 degree Panoramic IP Camera and body camera.

OEM and ODM service will be provided beyond your imagine.

LS Vision is definitely a worthwhile cooperation for you.

Certification

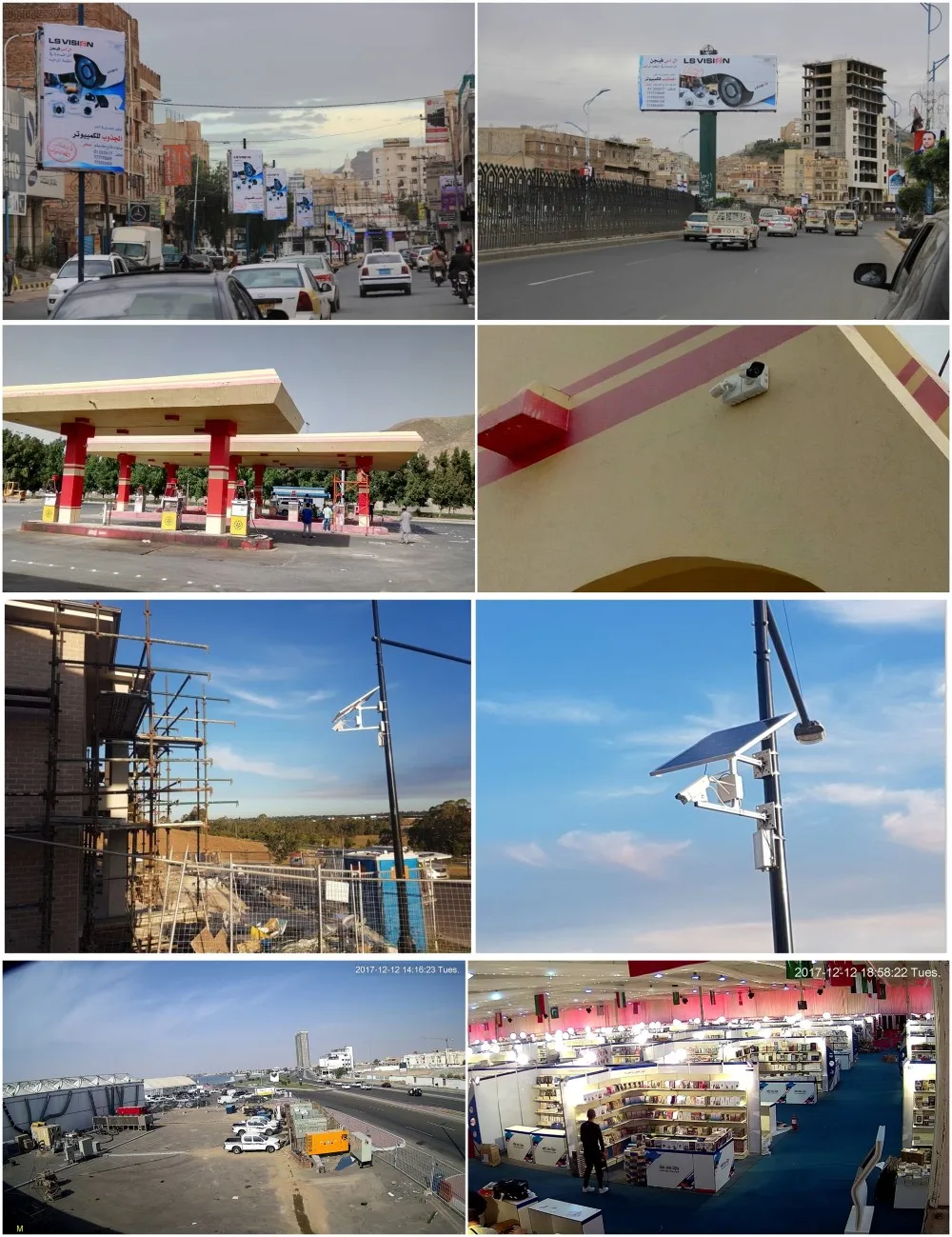

Security Projects

In Arabia, in Australia, in Philippines, in New Zealand, in korea,in the underground parking , in large shopping malls, in the wild...Day and night,the world is in our eyes, waiting for you to witness with LS-VISION!
