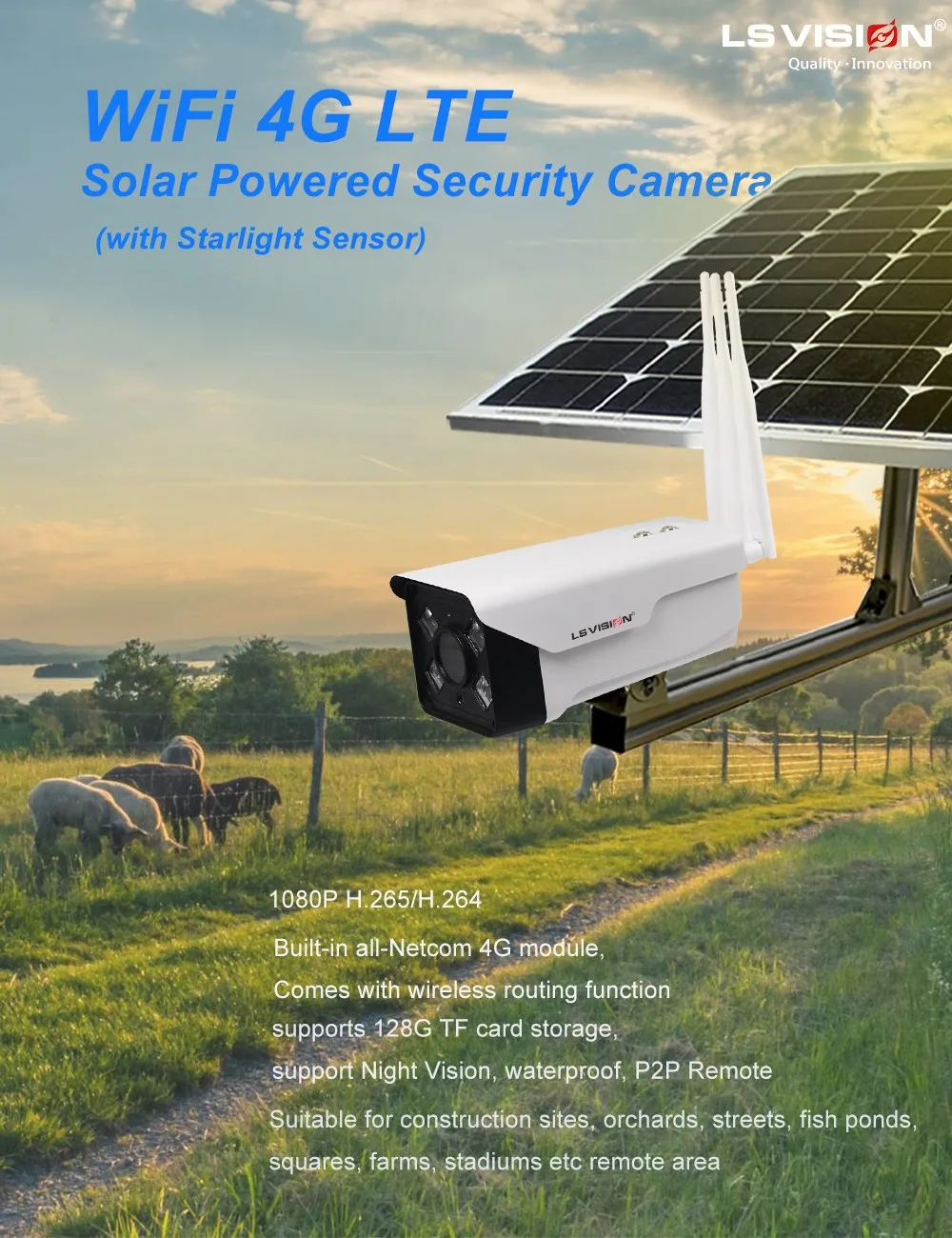

LS VISION H.265 1080P Bullet Camera Style Outdoor Waterproof IP P2P 3G 4G LTE Sim Card Starlight Solar Powered Wifi CCTV Camera

  • 1 - 49 Pieces
    $109.95
  • 50 - 99 Pieces
    $104.95
  • >=100 Pieces
    $99.95
Resolution:
1920 x 1080
Type:
IP Camera
Style:
Bullet Camera
Lead Time:
Quantity(Pieces) 1 - 20 21 - 50 51 - 100 >100
Est. Time(days) 8 12 18 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-MB6200S
Sensor:
CMOS, 1080P Hi3516E+ 1 / 2.8"Sony IMX307 Starlight sensor
Special Features:
Waterproof / Weatherproof
Key Feature1:
Optional: audio, motorized zoom lens, rotating bracket
Key Feature2:
built-in all-Netcom 4G module, comes with wireless routing function
Key Feature3:
comes standard with TF memory card slot (supports128G TF card
Video Encoding:
H.265/H.264
Standard lens:
F1.2 4mm Starlight lens
Antenna:
2 5DB 4G antenna, 1 5DB WIFI antenna
Power Consumption:
day 4W / night 12W, the day power consumption of about 12V16AH
Software:
P2P remote, low code cloud platform
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
CNT /Carton
4G solar IP Camera
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 20 21 - 50 51 - 100 >100
Est. Time(days) 8 12 18 To be negotiated
More Recommendation
Product Description

Key Features:


* Metal case,4 dot matrix light source IR distance 25 meters;

* built-in all-Netcom 4G module, comes with wireless routing function;

* comes standard with TF memory card slot (supports128G TF card);

* 2 5DB 4G antenna, 1 5DB WIFI antenna;

* software: P2P remote, low code cloud platform ;

* Standard lens: 3.6mm fixed lens

* power consumption: day 4W / night 12W, the day power consumption of about 12V16AH;

* Product Size: 175mm × 83mm × 83mm

* Optional Function: Audio, Motorized Zoom Lens, Rotating Bracket,

* Lens Optional: 2.8-12mm: add $16.00;  6-22mm: add $20.00;  Built-in pickup and speaker: add $5.00;

* Note: standard only solar wifi camera, standard without solar panel + lithium battery+Bracket, if you need full set with solar panel, battery and bracket, please contact us for Extra Purchase.

Solar Camera with Bracket, Battery & Solar Panel LS-K5020(50W) or LS-K7020 (70W)

Note: standard without Bracket, Battery and Solar Panel
solar panels with metal wall bracket, with duckbill stent can be
adjusted to the direction of solar energy
→ solar photovoltaic board size: 50W: 630*540*18mm
→ Bracket size: 700*430*30mm

Solar Camera with Rotating bracket LS-ZJ03

Note: standard without Rotating bracket
Rotating brackets are not supported if the camera is equipped with a solar panel with LS-K5020&LS-K7030.(Unable to install)
255 degree horizontal rotation, 60 degree vertical rotation

Technical Parameter

All Netcom 4G models feature:

→ using industrial 4G module, stable, long life, high and low temperature resistance, engage in interference ability;
→ five-mode 4G all Netcom, support telecommunications, China Unicom, mobile 4G / 3G / 2G, support Europe \ US \ day \ non-national 4G standard;
→ support network equipment using wired and wireless WIFI two access methods, but also two ways at the same time access;
→ comes with wireless routing function, the maximum support 8 devices WIFI access (IPC \ phone \ computer can be);
→ built-in WEB client, you can view the 4G signal strength, modify the login password, wireless access password;
→ factory optional 4G standard instructions are as follows:
1, the European standard: for Europe, Africa, most countries in Asia
2, the US standard: applicable to South America, North America
3, Japanese standards: apply to Japan


All Netcom 4G module parameters:
→ main chip: ZX297520M, WIFI chip: RTL8192ES-CG; Network type: 4G(FDD-LTE, TDD-LTE);3G( WCDMA / HSPA +, TD-SCDMA);2G( GSM / GPRS / EDGE)
→ operating frequency band: LTE B1 / B3 / B8 / B38 / B39 / B40 / B41, WCDMA 2100 / 900MHz,
→WCDMA /TD-SCDMA: B34 / B39
→GSM / GPRS / EDGE::900 / 1800MHz;
→ Rate: FDD-LTE / TDD-LTE: Upstream 50M / Downstream 150Mbps, HSPA +: Up to 5.76M / Downstream 21Mbps TD-SCDMA: uplink 2.2Mbps / downlink 2.8Mbps;
→ network access: a 10 / 100M adaptive RJ45 network interface, wireless WIFI maximum access to 8;
→ WiFi standard: 2412MHz-2472MHz, 802.11b / g / n, the maximum transfer rate of up to 72Mbps;
→ USIM / SIM card standard: Micro SIM card;
→ power supply standard: DC12V, power consumption: 2.5W

Model
4G Solar Camera with Starlight Lens LS-MB6200S
Camera
Imaging sensor:
Hi3516E+ 1 / 2.8" Sony
IMX307 Starlight sensor, 0.001LUX
Single system:
PAL / NTSC adjustable
Scanning mode:
Progressive scanning
Illumination:
0.001LUX
Lens:
Standard with 3.0 megapixel, F1.2 4mm Starlight lens
Day and night switch:
IR-CUT dual optical filters auto switch in day and night
Electronic shutter:
Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds)
White balance:
Auto / manual
DNR
3D-DNR
IR source:
4pcs  array IR
IR distance:
30- 50meters
4G
FDD-LTE
B1/B2/B3/B4/B7/B8/B12/B13B/B18/B19/B20/B26
TDD-LTE
B38/B39/B40/B41
WCDMA/TD-SCDMA
B1/B2/B4/B5/B8/B34/B39
GSM/GPRS/EDGE
900/ 1800MHz
Standard compression
Imageing compression
H.265
Video bit rate
128 Kbps -- 8 Mbps; CBR / VBR adjustable
Max image size
1984*1225
Frame size
1920 x 1080 @ 30 fps;
1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps;
704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps
Image adjustment
Through IE can adjust Saturation,
brightness, contrast,sharpness
Image mirroring
Horizontal mirroring, vertical mirroring
scene
Auto, indoor, outdoor
Digital enlarge
Can achieve through NVR, P2P HDmonitoring management software
Function
Storage
Support TF card storage 64G
Support TF card storage 64G
onvif
Support protocol
TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,
RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1x, QoS, IPv6,
Bonjour (SIP, SRTP optional)
Intelligent alarm
Motion detection, mask alarm, network cable
break , IP address conflict, storage card
is full, storage device is wrong
wifi
SMTP, SNMP, IGMP, 802.1x, QoS, IPv6,
Interface
Communication interface
Bonjour (SIP, SRTP optional)
Basic parameter
Power input
Motion detection, mask alarm, network cable
Power mption
break , IP address conflict, storage card
Work environment
is full, storage device is wrong
size
183mm*91mm*66mm
Certification
