LSVISION HD CCTV 8ch Network Recorder 1.3MP Wireless Camera 8ch 960P Wifi NVR Kit

FOB Reference Price:Get Latest Price
$240.00 - $260.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-NFWK8108
Type:
wifi nvr kit
Style:
bullet
Sensor:
Hisilicone chipset
Special Features:
Wifi
DSP:
Hi3535
Operating system:
Embedded Linux OS
Network Video:
8ch
Network video input broad bank:
20Mbps
Video Resolution:
D1/960P
Synch-playback:
8ch
Video/Capture mode:
Manual,Time,Motion,Alarm
Playback mode:
Real time,Routine,Event
Backup:
USB backup
HDD:
1 SATA
Technology:
Other
Supply Ability
Supply Ability:
3000 Piece/Pieces per Week 8ch wifi nvr kit
Packaging & Delivery
Packaging Details
1set/ctn, 8ch 960P wifi nvr kit
Port
shenzhen
Lead Time :
Shipped in 7 days after getting the payment
Product Description
Specification

8CH 960P WIFI NVR Kit                          Model :LS-NFWK8108


Key Features:

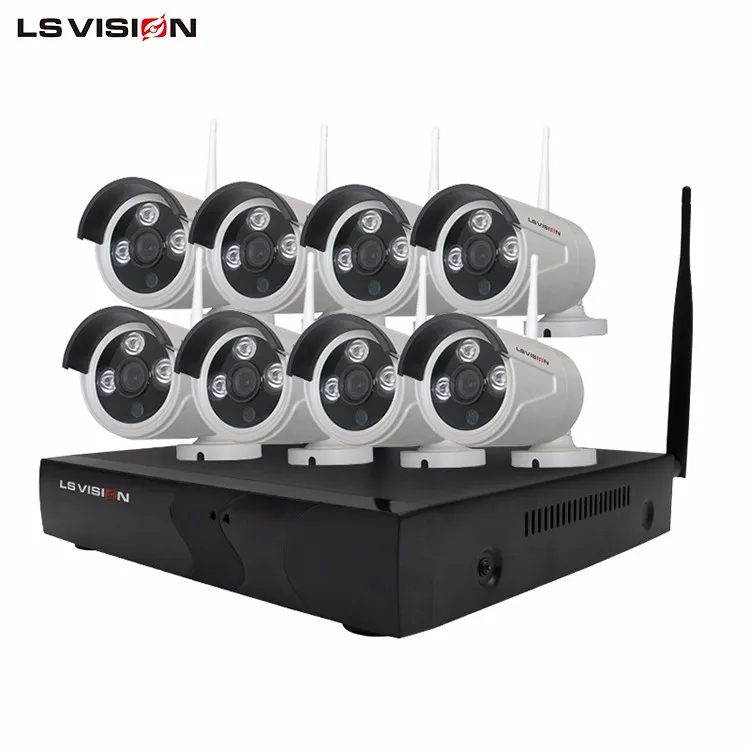

8CH 960P wifi NVR + 8pcs 960P wifi IP cameras

Convenient Installation

Plug and play

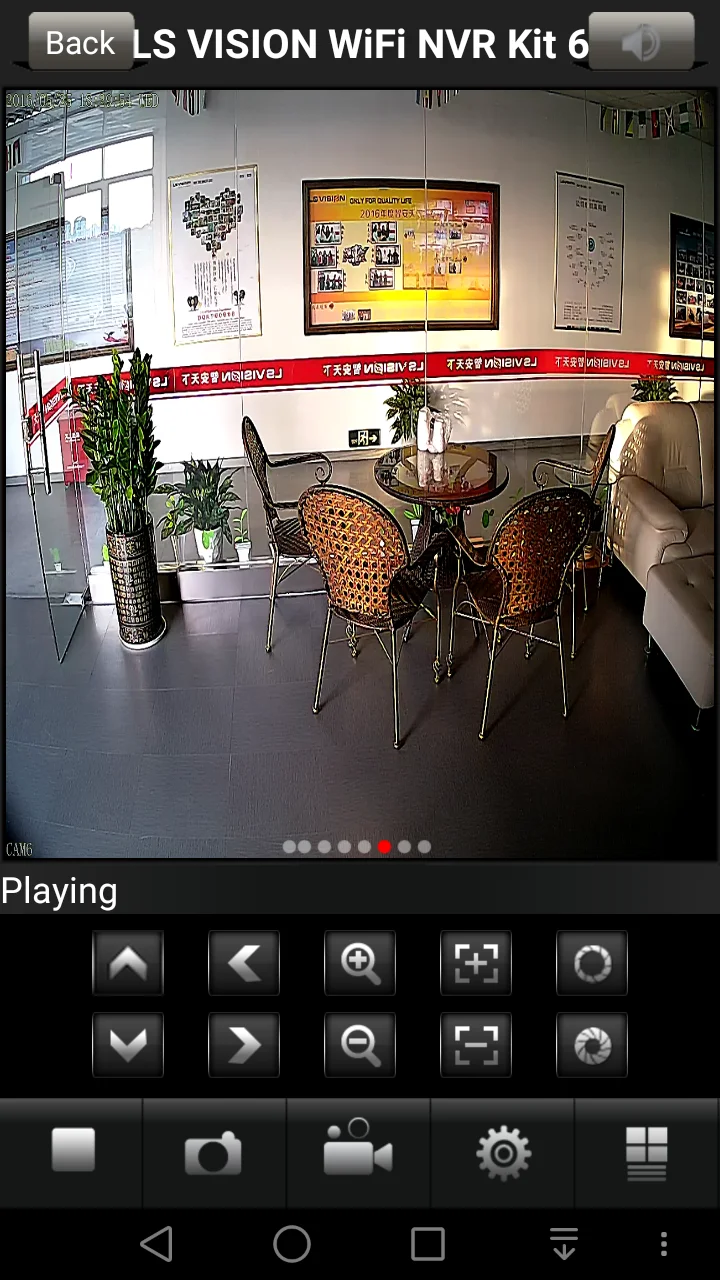

P2P, offer friendly APP

Support 1 SATA HDD

Wireless transmission stability:2.4G wireless

960P HD Video

Special and separate network for wireless transmission

Wifi wild working distance up to 60M

Quick setup, with built-in multilingual management page

Model
LS-NFWK8108
Operating System
Embedded Linux OS
 AV(video)input
DSP
Hi3535
Network Video
8CH
Network video input broad bank
20Mbps
     AV (video) output
HDMI input
1ch,resolution:1024x768,1366x768,1440x900,1920x1080p
VGA output
1ch,resolution:1024x768,1366x768,1440x900,1920x1080p
AV CODEC Specification
Video Resolution
D1/960P
synch-playback
8CH
 Video Control
Video/Capture mode
Manual、Time、Motion、Alarm
Playback mode
Real time、Routine、Event
Backup
USB backup
Alarm
Alarm Input
4ch (optional)
Alarm Output
1ch (optional)
Hard Disk
Type
1*SATA interface
Max Capacity
4 TB at most for each
External Interface
Network Interface
1 adaptable RJ45 10M/100M, 1 WIFI interface
USB Interface
2 USB 2.0
Network Control
Protocol
UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up)
DHCP (Automatically obtain an IP address), etc…
Others
Power Supply
DC12V3A
Power Consumption (W)
≤5W(Without HDD)
Operate Temperature (°C)
-10℃~+55℃
Working Humidity (%) RH
10%~90%
Size
257mm(W)×210mm(V)×45mm(H)
Weight(excluding HDD)
≤1Kg
IPC Specification:
Model
/
Sensor
1/3” Progressive Scan Sensor
DSP
Hi3518E+STW1135
Signal System
PAL/NTSC
Resolution
960P; 1280 x 960 16 : 9 High Defination
Minimum illumination
Color: 0.1 Lux; B/W: 0.01 Lux
Shutter
1/25s to 1/25,000s
Lens
3.6/4/6mm (optional)
OSD
Date Time & Title
White Balance
Auto
Day&Night
Auto / Color / BW
3D-DNR
Auto
Mirror/Flip
On / Off
Frame Specification
Three Streaming at the Same Time:

H.264 1280x960@30fps or belowH.264 640x480@30fps or below
Below
S/N
> 39.1 Db
Interface
RJ45 / WIFI 802.11b/g/n
General Specification
Anti-thunder Level
Standard IEC61000-4-5
Ambient

Temperature/Humidity
-10℃ to +50℃ / 30% to 80% RH
Working Temperature/Humidity
-20℃ to +60℃ / 20% to 90% RH
Power Input
DC12V-1A
Power consumption
≤6W
Size
205(L)×70(W)×55 (H)mm
Weight
0.5Kg
Level of Protection
IP66
