LSVISION Vandalproof 12MP 180 Degree Viewing Angle Outdoor IP Multi Lens CCTV Camera for Big Project

FOB Reference Price:Get Latest Price
$1,199.50 - $1,279.50 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LSVISION
Model Number:
LS-Q43
Type:
IP Camera
Style:
Dome Camera
Sensor:
CMOS
Special Features:
Waterproof / Weatherproof
Product name:
LS-Q43 180 degree viewing degree IP camera
Sensor Type:
1/2.8"3.0 MP Pixel progressive scan CMOS
DSP:
Hisilicon Series High Performance DSP
Viewing angle(H):
180°
D/N:
Day / Night Mode
Water-proof Level:
IP66
Serial interface:
RS485
Impact-resistant Level:
IK10
Weight (kg):
3.8 (net weight)
Power Consumption:
18W
Technology:
NetWork
Supply Ability
Supply Ability:
3000 Piece/Pieces per Week multi lens cctv camera
Packaging & Delivery
Packaging Details
Packed in Carton box
multi lens cctv camera
Port
Shenzhen
Specification

LSVISION Vandalproof 12MP 180 Degree Viewing Angle Outdoor IP Multi Lens CCTV Camera for Big Project

DSP
Hisilicon Series High Performance DSP
Sensor Type
1/2.8"3.0 MP Pixel progressive scan CMOS
Number of Sensor
4
Electronic Shutter
Manual/Auto;1/5s to 1/50,000s
Min Illumination
Color:0.1Lux @ F1.2 AGC On B/W:0.001Lux@ F1.2 AGC On;
Lens
4mm fixed-focus
Viewing angle(H)
180°
D/N
Day / Night Mode
Noise Reduction Mode
2D / 3D
Video Compression
H.264
Coding standard
H.264 Baseline/MainProfile/HighProfile Optional
Video compression rate
800kbps~48Mbps
Max Image Size
12.0MP / 4 x 2048x1536 (HDTV)
ePTZ
Electronic Pan / Tilt / Zoom
Frame Rate
4 x 2048x1536 @ 25fps (Pal) / 30fps (NTSC) ;
SN
≥50dB
Image Setup
Auto white balance, Auto Gain, Auto Shutter
Intelligent Alarm
Motion detection, tampering alarm, network disconnect, storage exception
Protecol
IPv4/IPv6、RTSP/RTP/RTCP、TCP/UDP、HTTP、DHCP、DNS、FTP、DDNS、PPPoE、SMTP、Banjour
Interface Protocol
Onvif V2.4.2 / CGI / SDK
General Function
One-key recovery
Network Port
1 * RJ45 10M/100M/1000M Self-adaption Ethernet port
Serial interface
RS485
Operating Conditions
-40℃ ~ 60℃, humidty less than 95% (No condensation)
Power Supply
DC12V±10%,3A
Power Consumption
18W
Water-proof Level
IP66
Impact-resistant Level
IK10
Dimensions(mm)
Φ228 x 330mm
Weight (kg)
3.8 (net weight)
Application


Compatible Platform Software Brand list

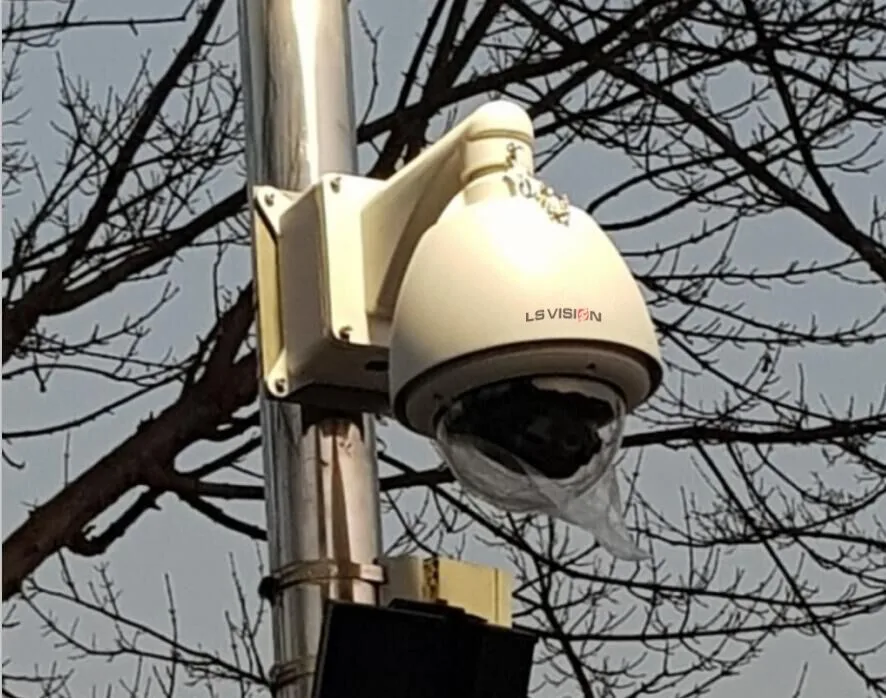

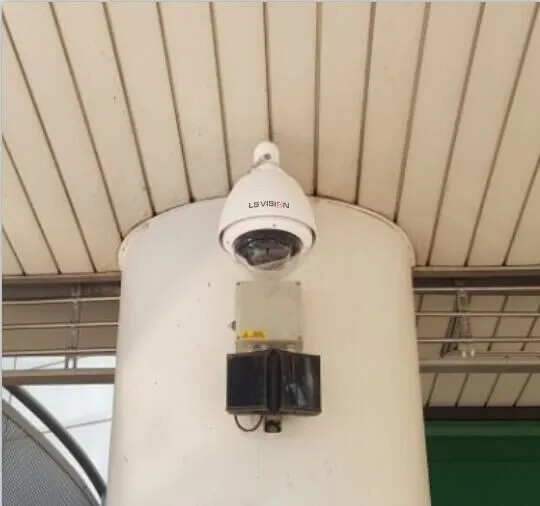

Successful Case

In Japan,in Panama, in Australia, in Philippines, in New Zealand, in korea, in large shopping malls, in the wild...Day and night,the world is in our eyes, waiting for you to witness with LS-VISION!


Certification
Other Products

        2mp 4mp IP PTZ Bullet Camera

      2mp Starlight low light IP camera

            Face Recognition IP Camera

LS VISION Info

Why LS VISION will be your first choice in the market?



LS VISION Technology Co., Ltd. (Own Brand: LS VISION). LS VISION is China No.1 IP Camera professional Supplier for Tough Environment. LS VISION always uphold the corporate culture – “Only for Quality Life” and focused on quality and service. Aim to provide top quality security products, professional service and best customer experience.

LS VISION main product include High Quality IP Camera, HD Network Camera, PTZ Camera etc.

LS Vision established since 2012, with fast growing, so far we have 20 engineers R&D team, 20 person sales team and 10 marketing team. LS VISION factory has around 30 workers in production line. and the production capacity can be 15,000pcs in each month. LS Vision's products are widely used in many fields, such as banking, public security, energy infrastructure, telecommunication, intelligent-building, and intelligent-transportation.


Now our team is keeping on research new products, Such as 4K H.265 IP Camera, Starlight IP Camera, 360 degree Panoramic IP Camera and body camera,face recognition IP Camera.

OEM and ODM service will be provided beyond your imagine.
