LS VISION 8 Sata CCTV NVR 64 Channel For IP Camera Support Face Detection

FOB Reference Price:Get Latest Price
$167.00 - $182.00 / Piece | 1 Piece/Pieces CCTV NVR (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-NF1664
Master Chip:
Intel J1900
Access bandwidth:
160M
Video Output:
CVBS,VGA & HD
IP Resolution:
Up to 1920*2048
Video Decoding:
PEG-4/H.264 (UP to High Profile Level4.2)
Synchronous Playback:
Up to 16CH
switch for 3mp camera:
16CH 3mp@20fps(8Mbps)/ 4CH 3mp playback
POE port:
16CH (IEEE 802.3af)
HDD:
2 Sata
Intelligent function:
face detection
Supply Ability
Supply Ability:
30000 Piece/Pieces per Week 64CH NVR
Packaging & Delivery
Packaging Details
360x260x48mm
Color Box
Port
shenzhen
Lead Time :
Shipped in 7 days after payment
Product Description

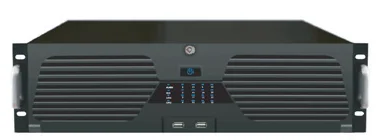

LS-NF1664 64ch NVR


Access capability 1 - 5 megapixel ip camera


Support ONVIF 2.4


Full HDMI output, support HDMI, VGA, CVBS synchronization output


Plug and play

support P2P function

16 SATA HDD capacity; 2 USB 2.0 Interfaces


Support 1CH face detection; 2CH boundary analysis


Specification
Module
LS-NF1664
OS
Embedded Linux
Master chip
Intel J1900
Access Bandwidth
160M
RAM
4GB DDR3
Bidirectional Talk
Two-way voice intercom function
CVBS Output
1CH,BNC(1.0Vp-p,75ohms)
HDMI
Resolution 1920×1080,
1280×1024,1280×720,1024×768,800×600
Audio Output
1CH,BNC(Line out,2Vpp,300ohms)
IP Resolution
Main stream:up to 5632x4224
Sub stream: no more than D1
Synchronous Playback
Up to 16CH
switch for 3.0MP IPC
16CH 3MP@20fps(8Mbps)
3.0MP Play back
4CH
switch for 5.0MP IPC
16CH 5MP@10fps(8Mbps)
5.0MP Play back
2CH
Bidirectional Talk
Two-way voice intercom function
Motion Detection
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Network Interface
2 RJ45 10M/100M/1000M adaptive Ethernet interface
Weight
3.0 Kg(without HDD)
Power Supply
110V~220V±10% ±10% 47Hz~63Hz
Working Temperature
 -10℃--+55℃
Working Humidity
10%--90%
Consumption
30W(without HDD)
Friendly CMS


How to do the connection of LS VISION POE NVR ?


How to use face detect function ?

Mobile P2P
Other Products

        2mp 4mp IP PTZ Bullet Camera

      2mp Starlight low light IP camera

            H.265 2mp Wifi nvr kit

LS VISION Info

Why LS VISION will be your first choice in the market?



LS VISION Technology Co., Ltd. (Own Brand: LS VISION). LS VISION is China No.1 IP Camera professional Supplier for Tough Environment. LS VISION always uphold the corporate culture – “Only for Quality Life” and focused on quality and service. Aim to provide top quality security products, professional service and best customer experience.

LS VISION main product include High Quality IP Camera, HD Network Camera, PTZ Bullet Camera,HD NVR, and H.265 WIFI NVR Kits etc.

LS Vision established since 2012, with fast growing, so far we have 20 engineers R&D team, 20 person sales team and 10 marketing team. LS VISION factory has around 30 workers in production line. and the production capacity can be 15,000pcs in each month. LS Vision's products are widely used in many fields, such as banking, public security, energy infrastructure, telecommunication, intelligent-building, and intelligent-transportation.


Now our team is keeping on research new products, Such as 4K H.265 Face Recognition IP Camera, Starlight IP Camera, 360 degree Panoramic IP Camera and body camera.

OEM and ODM service will be provided beyond your imagine.

LS Vision is definitely a worthwhile cooperation for you.
