LSVISION Onvif Home Office Surveillance H.265 4ch 2 Megapixel CCTV POE 265 NVR Kit

FOB Reference Price:Get Latest Price
$169.00 - $198.00 / Piece | 1 Piece/Pieces POE NVR Kit (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LSVISION
Model Number:
LS-K7104P
IP Camera:
H.265 4pcs 2MP POE IP Camera and POE NVR
Master chip:
Hi3535
Video&Audio input:
4ch 1080P/1CH,RCA
Video&Audio output:
CVBS/VGA/HMDI/Audio
Bidirectional Talk:
Two-way voice intercom
Access Bandwidth:
64M
Video decoding:
H.265
Resource capacity:
4ch 1080P Play back
SATA:
1
POE:
4CH RJ45 10M/100M adaptive Ethernet interface
Supply Ability
Supply Ability:
3000 Piece/Pieces per Week Onvif POE NVR Kit
Packaging & Delivery
Packaging Details
Onvif NVR Kit
CTN 400*300*220mm
1*NVR + 4*IP camera
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 7 To be negotiated
Product Description

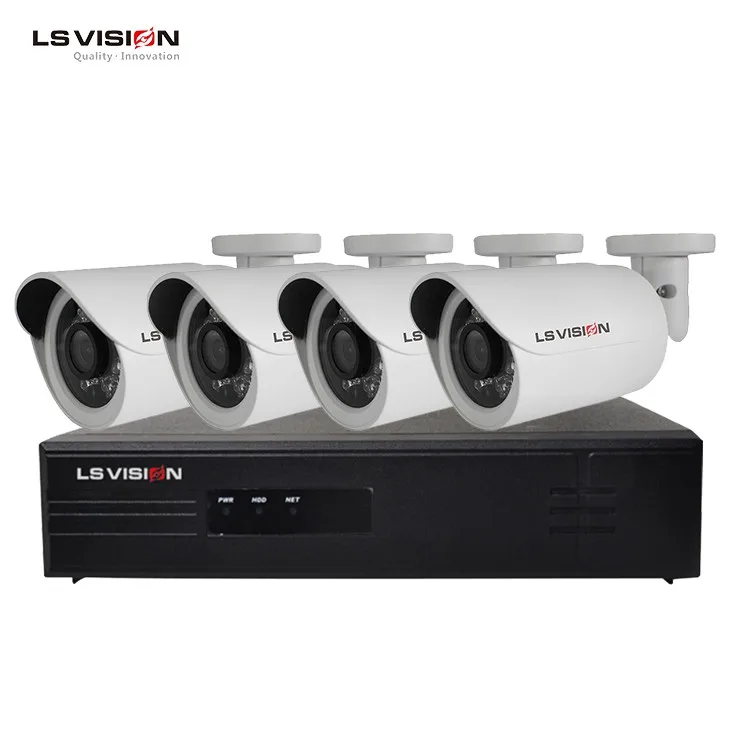

LSVISION Onvif Home Office Surveillance H.265 4ch 2 Megapixel CCTV POE 265 NVR Kit

Key Feature:

-High performance and industrial-grade SOC chip with low power consumption and steady system. Triple watchdog circuit protection system ensures no crashes phenomenon.

-With embedded Linux system, a 16-bit colored image enhancement technology, a consummate UI operation interface style.

-Support ONVIF 2.4 protocol.

-Full HDMI output, support HDMI, VGA, CVBS synchronization output.

-With hard disk dormancy and Wake-on-LAN technology, which lower power consumption, improve the stability and prolong the hard disk life.

-With hard disk S.M.A.R.T management technology; capacity is unlimited and health status of hard disk can be monitored at any time.

-Hard disk dual redundant technology with data backup effectively ensures video security.

-Network QOS automatically adjusting the code flow and network transmission strategy ensures the Network transmission reliability.

-Plug and play, support P2P function, cloud services and cloud storage is provided.

-Supports Iphone,Windows Mobile,Symbian,Andriod,Blackberry

-4ch POE port built-in


Specification
Product name:
LS-NF5104P 4ch POE NVR
OS
Embedded Linux
master chip
Hi3535
Access Bandwidth
64M
1 CH(Line in,2Vpp,1Kohms)
IPC Input
up to 4ch D1@30fps(2Mbps)
Video&Audio output
CVBS Output
1CH,BNC(1.0Vp-p,75ohms)
VGA
1CH,Resolution 1920×1080,1280×1024, 1280×720,1024×768,800×600
HMDI
Standard 1.3a
Video&Audio encoding
Resolution 1920×1080, 1280×1024,1280×720,1024×768,800×600
Audio Output
1CH,BNC(Line out,2Vpp,300ohms)
Video&Audio codecs
Audio Compression
G711A
Audio Bit Rate
64Kbps
IP Resolution
Main stream:up to 5632x4224
resource capacity
Video bitrate
Up to 2Mbps@D1, 4Mbps@720P, 4Mbps@1080P
Video decoding
H.265
Synchronous Playback
Up to 4CH
D1 Play back
4CH
720P Play back
4CH
1080P Play back
4CH
switch for 3.0MP IPC
4CH 3MP@20fps(8Mbps)
Other Function
3.0MP Play back
4CH
switch for 5.0MP IPC
4CH 5MP@10fps(8Mbps)
5.0MP Play back
2CH
HDD Interface
Bidirectional Talk
Two-way voice intercom function
Motion Detection
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
POE
Picture Capture
Local Capture&Web Capture
External Interface
SATA
1
ESATA
0
General
POE interface
4CH RJ45 10M/100M adaptive Ethernet interface
Network Interface
1 RJ45 10M/100M/1000M adaptive Ethernet interface
USB
2 USB 2.0 Interfaces
Dimensions
215x235x50mm(W×D× H)
Weight
1.5Kg(without HDD)
Power Supply
DC 48V/1.875A
Working Temperature
-10℃--+55℃
Working Humidity
10%--90%
Consumption
7W(without HDD)
