LS Vision 8 Channel Outdoor IP PoE Security Camera NVR Kit System For Apartment Surveillance

FOB Reference Price:Get Latest Price
$299.00 - $333.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS Vision
Model Number:
LS-K7108P
NVR:
8 IP POE cameras and 8CH POE NVR
SATA:
1 SATA up to 6TB
Camera:
1920*1080
Protocal:
Onvif 2.4
Lens:
3.6/6mm HD Fixed Lens
IR Leds:
4PCS Array Leds
IR Distance:
20 Meters
Waterproof:
IP 66
Certificate:
CE FCC RoHS
Supply Ability
Supply Ability:
3000 Unit/Units per Week PoE Security Camera System
Packaging & Delivery
Packaging Details
CNT
PoE Security Camera System
Port
SHENZHEN
Lead Time :
Shipped in 15 days after payment
Product Description

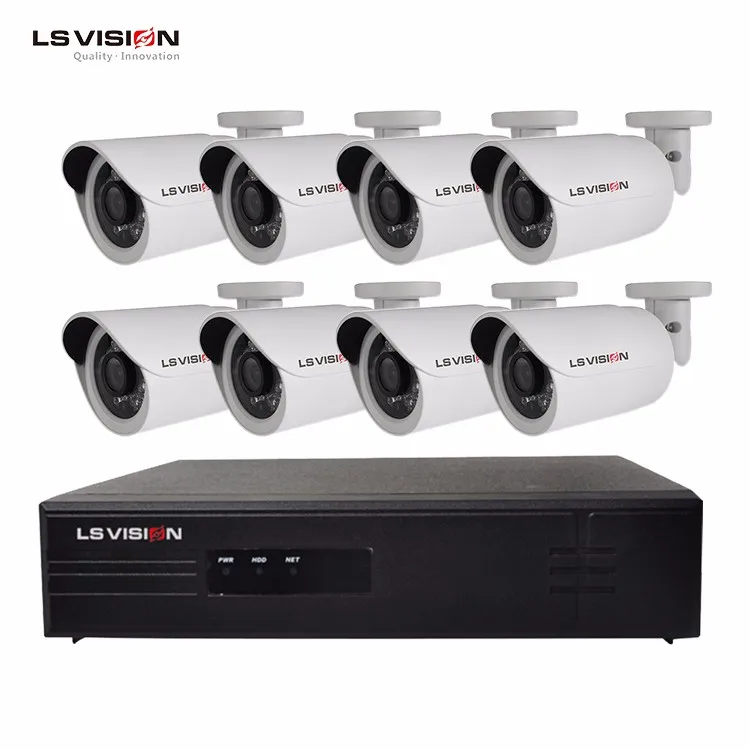

LS Vision 8 Channel Outdoor IP PoE Security Camera NVR Kit System For Apartment Surveillance

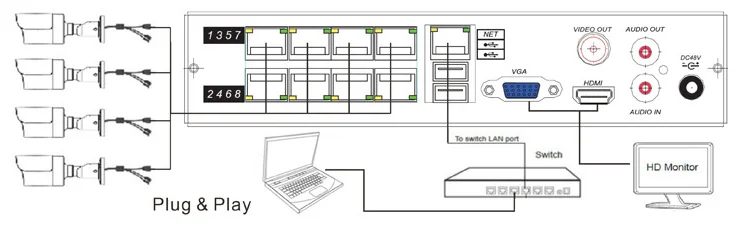

 A Network Video Recorder (NVR) is a video recorder that is connected to your computer network and records video footage from the IP cameras also connected to that network. It allows you to manage an IP camera system via existing computers and IT hardware.

PoE IP cameras (Power over Ethernet) allow the user to take advantage of low cost CAT5e or CAT6 network cable for their indoor infrastructure.

IP Megapixel cameras also cover a larger area than analog CCTV cameras. This enables to you to use fewer cameras and save on equipment, installation, and maintenance costs.

Specification

Key Features:

1.High performance and industrial-grade SOC chip with low power consumption and steady system. Triple watchdog circuit protection system ensures no crashes phenomenon.

2.With embedded Linux system, a 16-bit colored image enhancement technology, a consummate UI operation interface style.

3.Hard disk dual redundant technology with data backup effectively ensures video security.

4.Network QOS automatically adjusting the code flow and network transmission strategy ensures the Network transmission reliability.

5.Plug and play, support P2P function, cloud services and cloud storage is provided.

6.Supports Iphone、Windows Mobile、Symbian、Andriod、Blackberry

7.8ch POE port built-in

8.Intelligent features: 1CH face detection, 2ch boundary analysis

Model
LS-NB1204C 2mp IP Bullet camera
Camera
Image Sensor
1/2.9" IMX 323 CMOS Sensor
Effective Pixels
1920(H)x1080 (V)
Electronic Shutter
AUTO, 1/25s ~ 1/100000s
Min. Illumination
0.01Lux@ F1.2(AGC ON), 0Lux IR on
Day/Night
Auto/Color/(B/W)/Timing
White Balance
Auto/Indoor/Outdoor
AGC
Support
DNR
2D/3D DNR
Other
Motion Detection, Privacy Mask, Mirror, Flip
Encode
Multi-lines OSD, Motion Detection, Privacy Mask, Mirror, Rotate
Embedded Solution
MSC313E
Video Standard
H.265/H.264 Double code
Video Resolution
Main stream: 1080P@ 20fps / 720P/D1@ 30fps.Sub stream: 360P/CIF@ 30fpsfps
Video Bitrates
500Kbps -4Mbps, VBR/CBR
Audio Standard
G.711-u
IR Led
4 pcs IR Leds
IR Led
8 pcs IR Leds
IR Distance
20M
Module

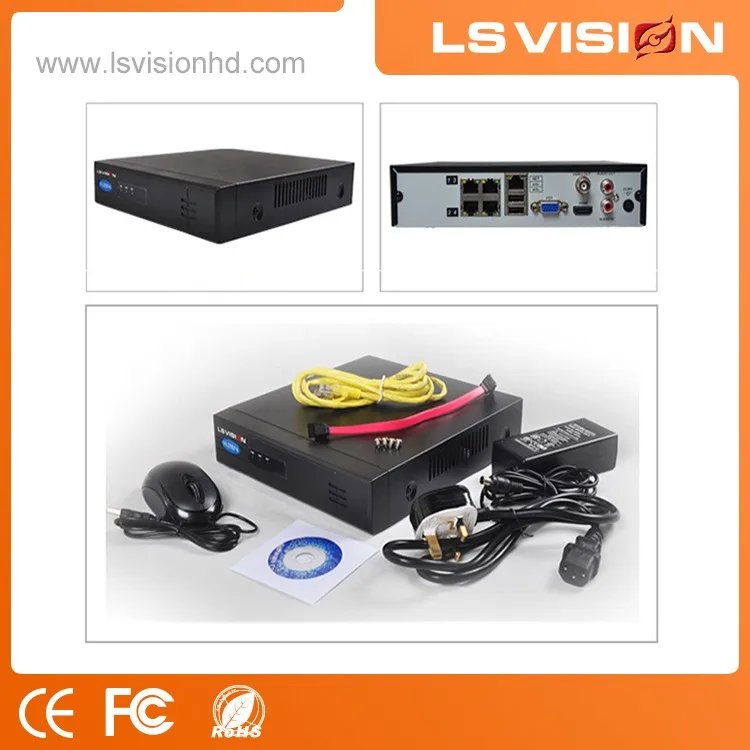

LS-NF7108P 8ch POE NVR
OS
Embedded Linux
master chip
Hi3535
Access Bandwidth
64M
Bidirectional Talk
1 CH(Line in,2Vpp,1Kohms)
IPC Input
up to 8ch D1@ 30fps(2Mbps) or 8ch 720P@ 30fps(4Mbps) or 8ch 1080P@ 30fps(8Mbps) or 8ch 3MP@ 20fps(8Mbps) or 8ch 5MP@ 10fps(8Mbps)
CVBS Output
1CH,BNC(1.0Vp-p,75ohms)
VGA
1CH,Resolution 1920×1080,1280×1024, 1280×720,1024×768,800×600
HDMI
Resolution 1920×1080, 1280×1024,1280×720,1024×768,800×600
Audio Compression
G711A
Audio Bit Rate
64Kbps
IP Resolution
Main stream:up to 2560x1920,Sub stream: no more than D1
Video bitrate
Up to 2Mbps@ D1, 4Mbps@ 720P, 8Mbps@ 1080P
Video decoding
MPEG-4/H.264(Up to High Profile@ Level4.2)
Synchronous Playback
Up to 8CH
D1 Play back
8CH
720P Play back
8CH
1080P Play back
6CH
switch for 3.0MP IPC
8CH 3MP@ 20fps(8Mbps)
3.0MP Play back
4CH
switch for 5.0MP IPC
8CH 5MP@ 10fps(8Mbps)
5.0MP Play back
2CH
Bidirectional Talk
Two-way voice intercom function
Motion Detection
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Detailed Images
Quality Demo
Certification
Exhibition
We will attend Security Essen 2018(Messe Essen GmbH). Sincerely welcome your visit.

Date:25.09.2018-28.09.2018

LS Vision Booth:Hall 5,5F49.
LS VISION Info

Why LS VISION will be your first choice in the market?



LS VISION Technology Co., Ltd. (Own Brand: LS VISION). LS VISION is China No.1 IP Camera professional Supplier for Tough Environment. LS VISION always uphold the corporate culture – “Only for Quality Life” and focused on quality and service. Aim to provide top quality security products, professional service and best customer experience.

LS VISION main product include High Quality IP Camera, HD Network Camera, PTZ Camera, AHD Camera, HD-TVI Camera, AHD DVR, TVI DVR, Hybrid Camera Dvr, HD NVR, and WIFI NVR Kits etc.

LS Vision established since 2012, with fast growing, so far we have 20 engineers R&D team, 20 person sales team and 10 marketing team. LS VISION factory has around 30 workers in production line. and the production capacity can be 15,000pcs in each month. LS Vision's products are widely used in many fields, such as banking, public security, energy infrastructure, telecommunication, intelligent-building, and intelligent-transportation.


Now our team is keeping on research new products, Such as 4K H.265 IP Camera, Starlight IP Camera, 360 degree Panoramic IP Camera and body camera.

OEM and ODM service will be provided beyond your imagine.

LS Vision is definitely a worthwhile cooperation for you.

Successful Case

In Arabia, in Australia, in Philippines, in New Zealand, in korea,in the underground parking , in large shopping malls, in the wild...Day and night,the world is in our eyes, waiting for you to witness with LS-VISION!
