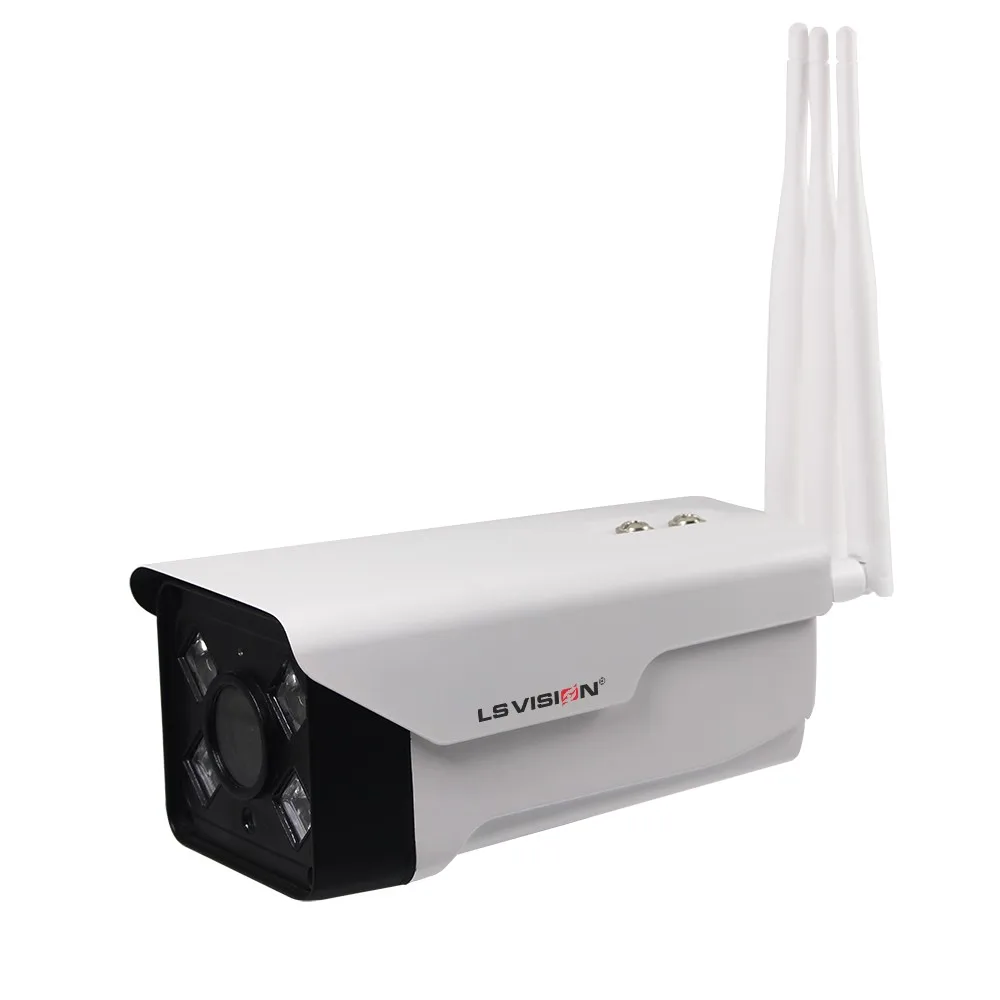

LS VISION IMX307 Starlight Sensor Outdoor Waterproof 2G 3G 4G LTE Wireless Solar Power Security Bullet IP Camera

  • 2 - 49 Pieces
    $99.95
  • 50 - 99 Pieces
    $94.95
  • >=100 Pieces
    $89.99
Resolution:
1920 x 1080
Type:
4G Solar Wifi Camera
Style:
Bullet Camera
Lead Time:
Quantity(Pieces) 1 - 20 21 - 50 51 - 100 >100
Est. Time(days) 8 12 18 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Samples:
$99.95 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-MB6200S
Sensor:
CMOS
Special Features:
Waterproof / Weatherproof
Feature1:

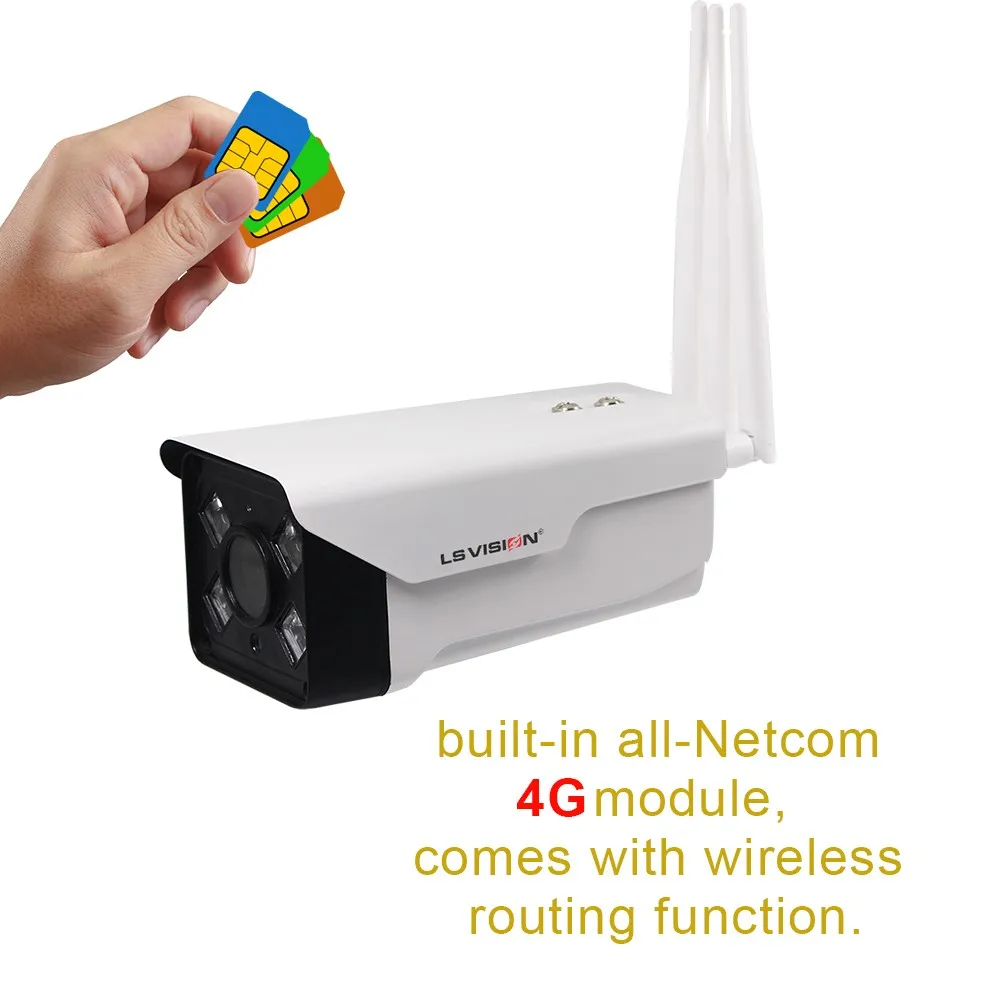

built-in all-Netcom 4G module, comes with wireless routing function
Feature2:
1/2.8" Sony IMX307 Starlight sensor 0.001LUX
Feature3:
comes standard with TF memory card slot (supports128G TF card)
IR distance:
30-50 meters
Interface protocol:
onvif
Digital enlarge:
Can achieve through NVR, P2P HD monitoring management software
Storage:
Support TF card storage 128G
Imageing compression:
H.265/H.264
DNR:
3D-DNR
Work environment:
35℃; - 60℃, humidity is less than 95% (no condensation)
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
color box/carton
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 20 21 - 50 51 - 100 >100
Est. Time(days) 8 12 18 To be negotiated
More Recommendation
Key Feature

4 G /3G Features:

1)Use of industrial 4G module, stable, long life,Anti-interference ability;
2)4G main chip :ZX297520M, WIFI chip:RTL8192ES-CG
3)4G all Netcom, support telecommunications, Unicom, mobile 4G / 3G / 2G, support Europe \ US \ Japan \ African 4G standards;
4)Network type :FDD-LTE, TDD-LTE, WCDMA/HSPA+, TD-SCDMA, GSM/GPRS/EDGE
5)Operating frequency :LTE B1/B3/B8/B38/B39/B40/B41,WCDMA,2100/900MHz,TD-SCDMA B34/B39,GSM/GPRS/EDGE: 900/ 1800MHz
6)Rate:FDD-LTE/TDD-LTE:up speed 50M / down speed 150Mbps
HSPA+:up speed 5.76M / down speed 21Mbps
TD-SCDMA: up speed 2.2Mbps / down speed 2.8Mbps
7)Support network equipment using wired and wireless WIFI two access methods
8)WiFi:2412MHz-2472MHz,802.11b/g/n,The maximum transfer rate is up to 72Mbp
9)USIM/SIM card :Micro SIM card
10)Built-in WEB client, Can view the 4G signal strength, modify the login password, wireless access password and others

IP camera Features:

1)Professional design for 4G/3G IP camera, easy assembly 4G card and TF card
2)3.0 megapixel HD lens + IR-CUT auto swith in day and night, 3.6mm/6mm lens, 2.8-12mm and 6-22mm auto focus lens as optional
3)Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image;
4)Standard SD/TF memory card slot (support 64G card);
5)Standard 1 X 5DB 4G antenna, one 5DB WIFI antenna;
6)Power consumption: : day 4W / night 12W, the day power consumption of about 12V 16AH
7)Support P2P remote check
8)Optional function: two way audio , pan tilt rotating bracket
9)Support ONVIF protocol, can provide the SDK


* Optional: Audio, Motorized Zoom Lens, Rotating Bracket,
* Lens Optional: 2.8-12mm: add $16.00; 6-22mm: add $20.00; Built-in pickup and speaker: add $5.00;


*
Note: standard only solar camera, standard without solar panel + lithium battery+Bracket, if you need full set with solar panel, battery and bracket, please contact us for Extra purchase.

Product Description

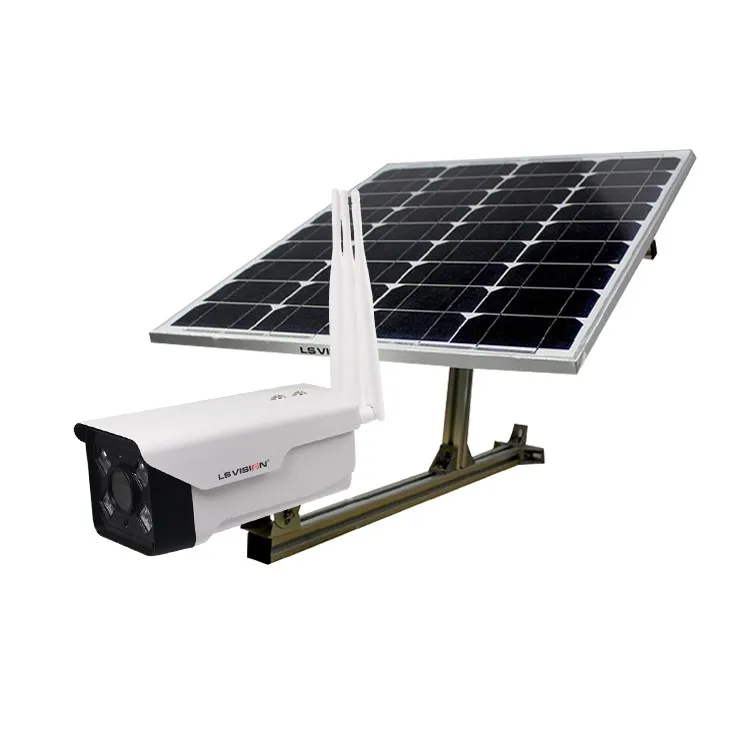

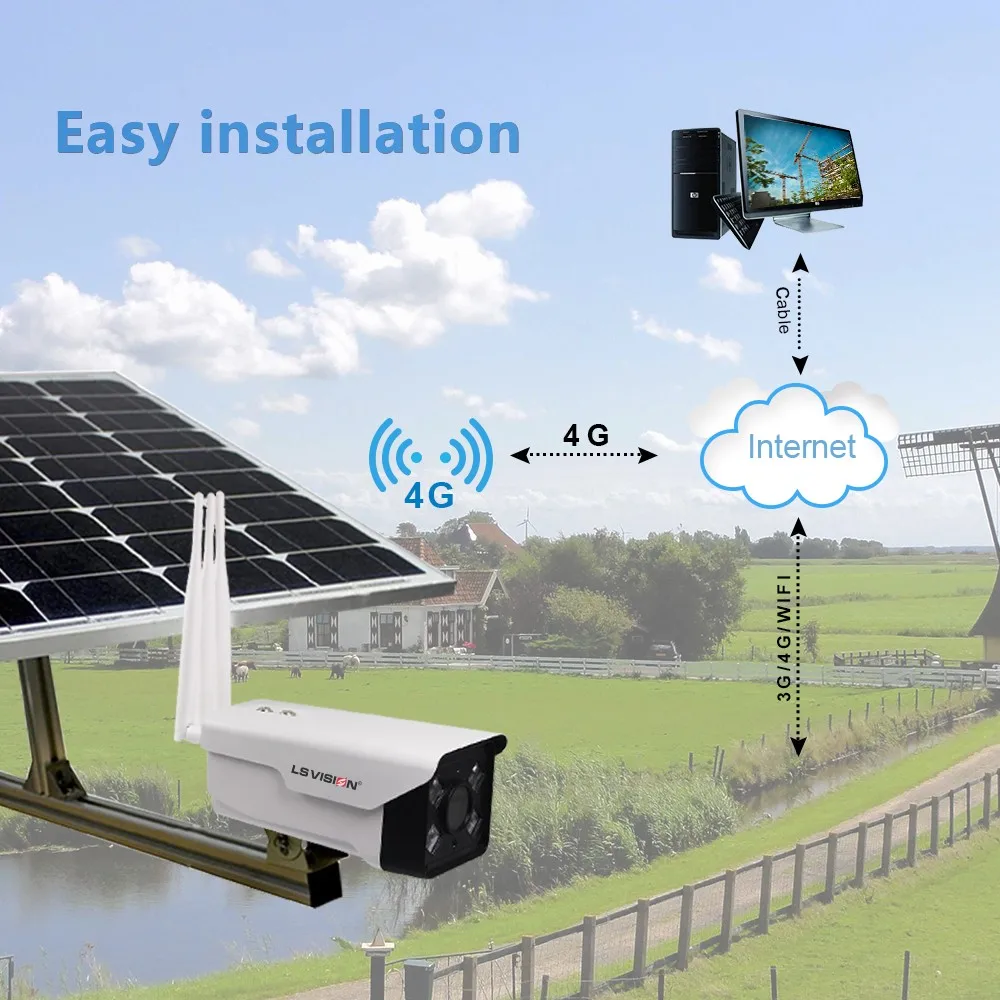

Solar Camera with Bracket, Battery & Solar Panel LS-K5020(50W) or LS-K7020 (70W)

Note: standard without Bracket, Battery and Solar Panel
solar panels with metal wall bracket, with duckbill stent can be
adjusted to the direction of solar energy
→ solar photovoltaic board size: 50W: 630*540*18mm
→ Bracket size: 700*430*30mm

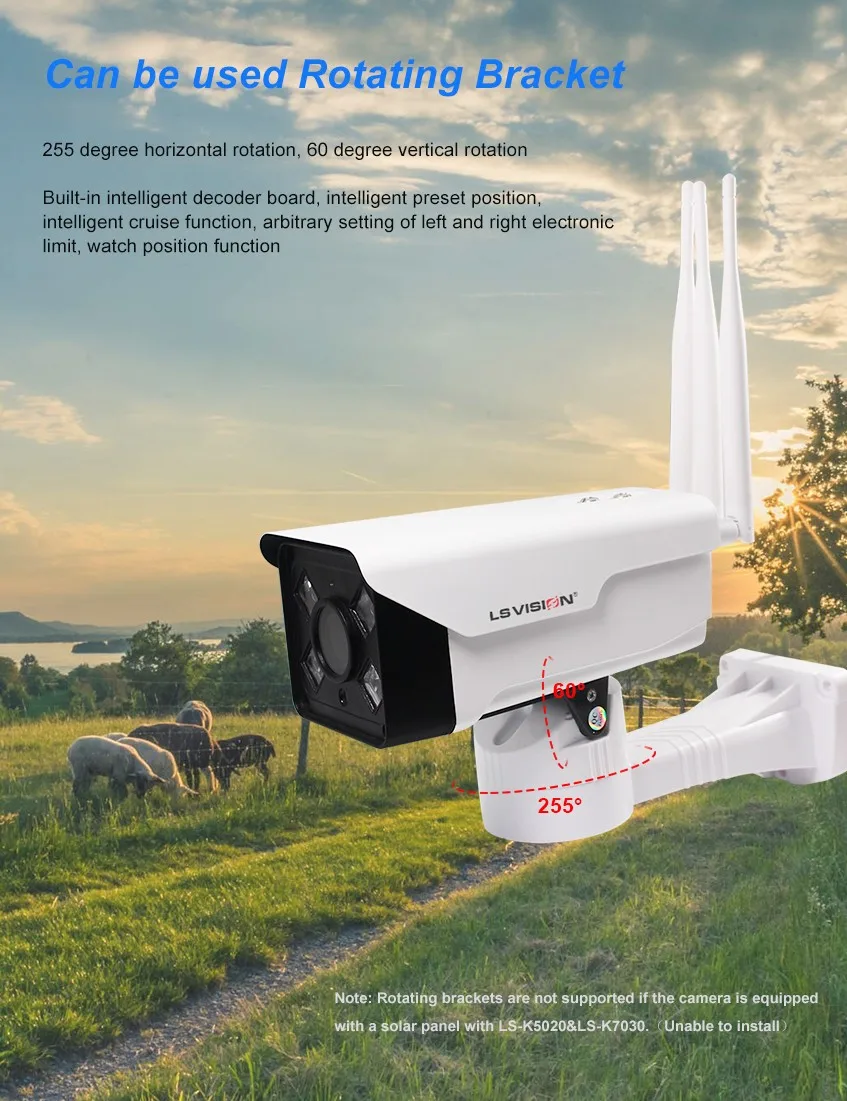

Solar Camera with Rotating bracket LS-ZJ03

Note: standard without Rotating bracket
Rotating brackets are not supported if the camera is equipped with a solar panel with LS-K5020&LS-K7030.(Unable to install)
255 degree horizontal rotation, 60 degree vertical rotation

Technical Parameter
Model
4G Solar Camera with Starlight Lens LS-MB6200S
Camera
Imaging sensor:
Hi3516E+ 1 / 2.8" Sony
IMX307 Starlight sensor, 0.001LUX
Single system:
PAL / NTSC adjustable
Scanning mode:
Progressive scanning
Illumination:
0.001LUX
Lens:
Standard with 3.0 megapixel, F1.2 4mm Starlight lens
Day and night switch:
IR-CUT dual optical filters auto switch in day and night
Electronic shutter:
Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds)
White balance:
Auto / manual
DNR
3D-DNR

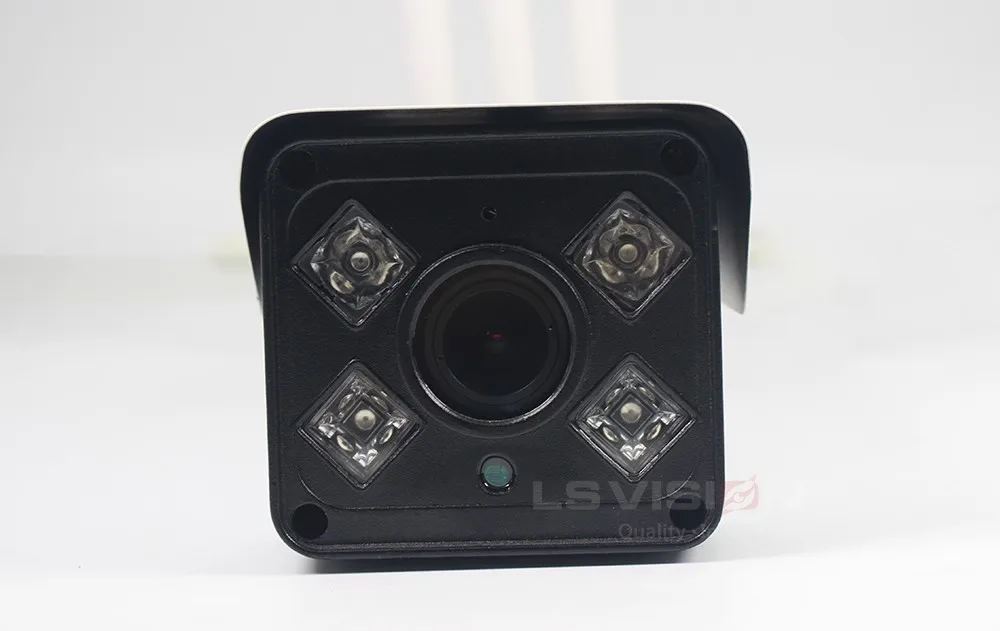

IR source:
4pcs  array IR
IR distance:
30- 50meters
4G
FDD-LTE
B1/B2/B3/B4/B7/B8/B12/B13B/B18/B19/B20/B26
TDD-LTE
B38/B39/B40/B41
WCDMA/TD-SCDMA
B1/B2/B4/B5/B8/B34/B39
GSM/GPRS/EDGE
900/ 1800MHz
Standard compression
Imageing compression
H.265
Video bit rate
128 Kbps -- 8 Mbps; CBR / VBR adjustable
Max image size
1984*1225
Frame size
1920 x 1080 @ 30 fps;
1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps;
704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps
Image adjustment
Through IE can adjust Saturation,
brightness, contrast,sharpness
Image mirroring
Horizontal mirroring, vertical mirroring
scene
Auto, indoor, outdoor
Digital enlarge
Can achieve through NVR, P2P HDmonitoring management software
Function
Storage
Support TF card storage 64G
Support TF card storage 64G
onvif
Support protocol
TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,
RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1x, QoS, IPv6,
Bonjour (SIP, SRTP optional)
Intelligent alarm
Motion detection, mask alarm, network cable
break , IP address conflict, storage card
is full, storage device is wrong
wifi
SMTP, SNMP, IGMP, 802.1x, QoS, IPv6,
Interface
Communication interface
Bonjour (SIP, SRTP optional)
Basic parameter
Power input
Motion detection, mask alarm, network cable
Power mption
break , IP address conflict, storage card
Work environment
is full, storage device is wrong
size
183mm*91mm*66mm
Certification
