LS VISION 360 Degree IP Security PTZ Rotation Panoramic Dome Camera CCTV with 8 Lens Project Use

  • 1 - 9 Pieces
    $2,400.00
  • >=10 Pieces
    $2,280.00
Type:
IP Camera
Style:
Dome Camera
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-Q83U
Sensor:
CMOS
Special Features:
Waterproof / Weatherproof
Key Feature1:
Multi-sensor 4/5/8 Cameras
Key Feature2:
24MP Solution
Key Feature3:
IMX123 Starlight Sensor
Viewing angle(H):
360°
D/N:
Day / Night Mode
Water-proof Level:
IP66
Serial interface:
RS485
Weight (kg):
3.8 (net weight)
Power Consumption:
18W
WDR:
130DB
Supply Ability
Supply Ability:
3000 Piece/Pieces per Week IP Security Video Camera
Packaging & Delivery
Packaging Details
CNT
IP Security Video Camera
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 25 To be negotiated
New Products

Starlight Camera

Sony IMX307 Super Low-lux; Colourful image at night

H.265 1080P Wifi Kits

Plug and Play, Easy Install

2mp/4mp PTZ Bullet

10X Bullet PTZ, Auto Zoom and Focus

4K/8MP Camera

 Super HD 4K/8MP IP

Battery Camera

Support two-way intercom

Solar Battery Wifi Camera

Support two-way intercom
specification

LSVISION 360 Degree IP Security PTZ Rotation Panoramic Dome Camera with 8 Lens Project Use

Key Features:


1.Multi-sensor 4/5/8 connection, each 3mp.

2.High-efficiency economic installation, industrial high-quality optical lens

3.Support ePTZ to look multiple regions

4.8x3.0MP@30fps or 24.0MP@30fps

5.Use H.264 High Profile, with high compression ratio

6.ICR switch automatically,realize real day/night surveillance

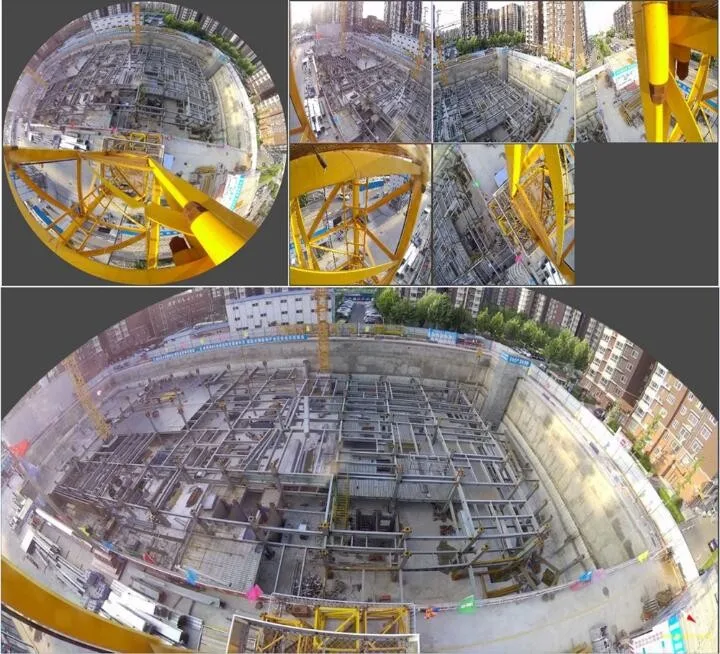

7.Support Web and Client dewarping by software

8.Be fit for outdoor big-area environment in different temperature and humidity

9.Support IP66 rated, IK10 impact resistance rate design

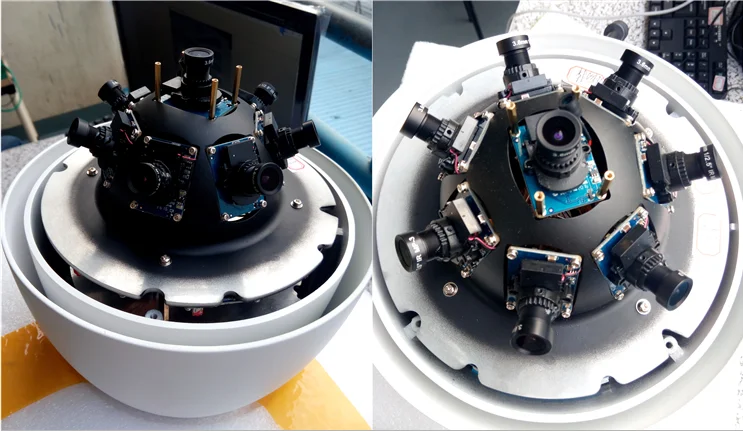

Multisensor 4/5/8 lens

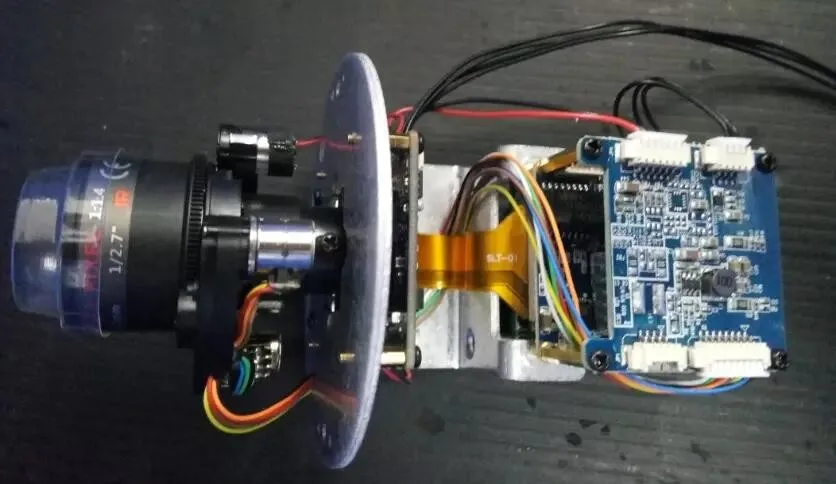

Normal One Lens One Sensor

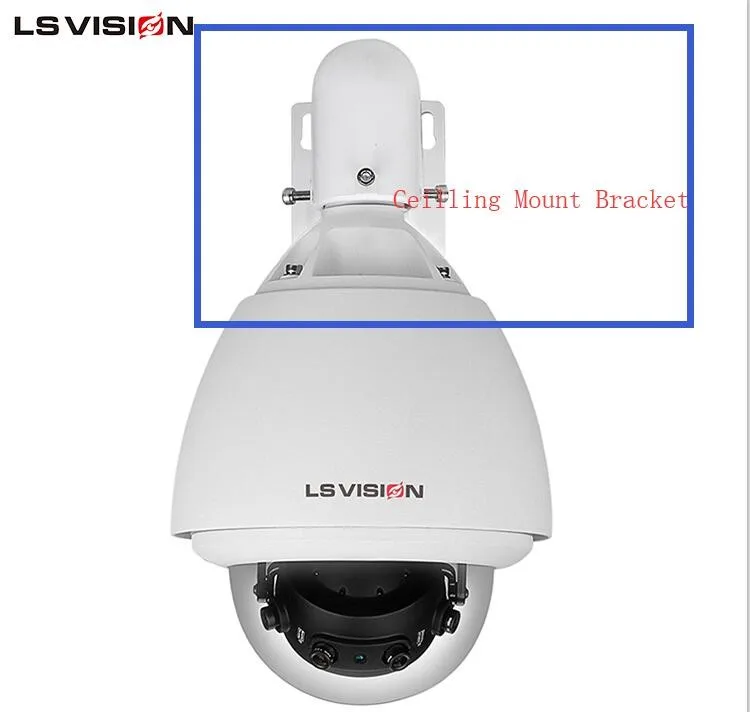

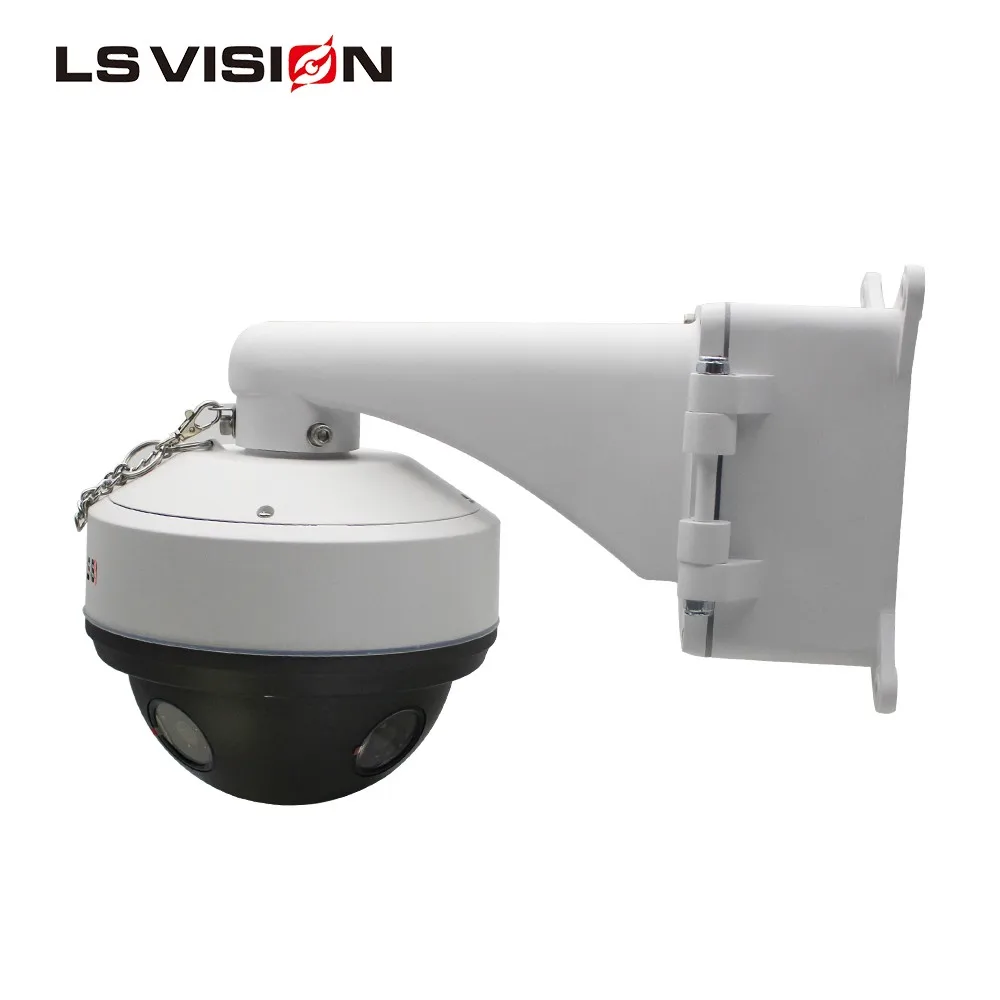

Two Brackets for Option


DSP
Hisilicon Series High Performance DSP
Sensor Type
1/2.8"3.0 MP Pixel progressive scan CMOS
Number of Sensor
8
Electronic Shutter
Manual/Auto;1/5s to 1/50,000s
Min Illumination
Color:0.1Lux @ F1.2 AGC On B/W:0.001Lux@ F1.2 AGC On;
Lens
4mm fixed-focus
Viewing angle(H)
360°
D/N
Day / Night Mode
Noise Reduction Mode
2D / 3D
Video Compression
H.264
Coding standard
H.264 Baseline/MainProfile/HighProfile Optional
Video compression rate
800kbps~48Mbps
Max Image Size
24.0MP / 4 x 2048x1536 (HDTV)
ePTZ
Electronic Pan / Tilt / Zoom
Frame Rate
4 x 2048x1536 @ 25fps (Pal) / 30fps (NTSC) ;
SN
≥50dB
Image Setup
Auto white balance, Auto Gain, Auto Shutter
Intelligent Alarm
Motion detection, tampering alarm, network disconnect, storage exception
Protecol
IPv4/IPv6,RTSP/RTP/RTCP,TCP/UDP,HTTP,DHCP,DNS,FTP,DDNS,PPPoE,SMTP,Banjour
Interface Protocol
Onvif V2.4.2 / CGI / SDK
General Function
One-key recovery
Network Port
1 * RJ45 10M/100M/1000M Self-adaption Ethernet port
Serial interface
RS485
Operating Conditions
-40℃ ~ 60℃, humidty less than 95% (No condensation)
Power Supply
DC12V±10%,3A
Power Consumption
18W
Water-proof Level
IP66
Impact-resistant Level
IK10
Dimensions(mm)
Φ228 x 330mm
Weight (kg)
3.8 (net weight)

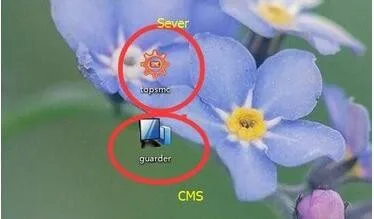

CMS

Sever and CMS

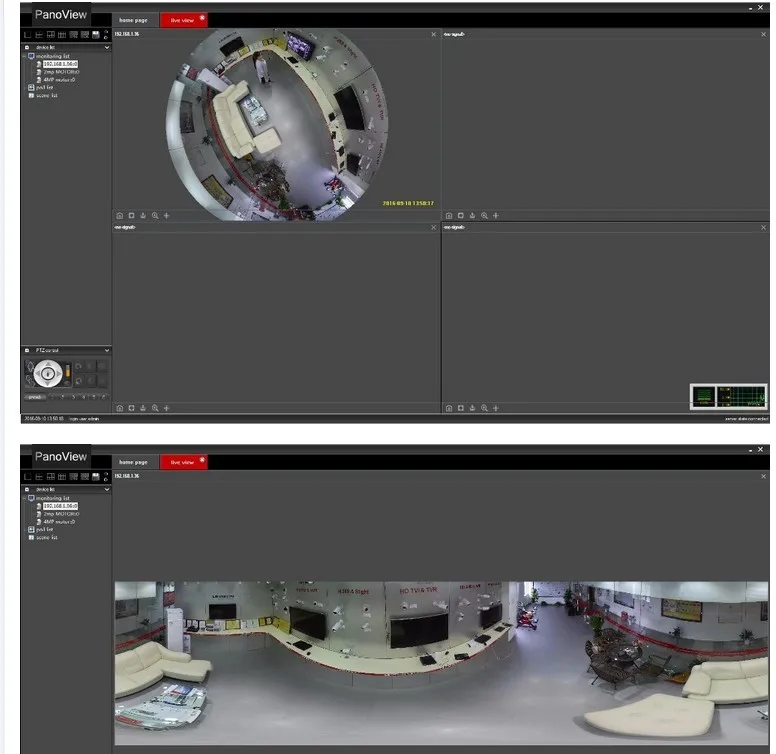

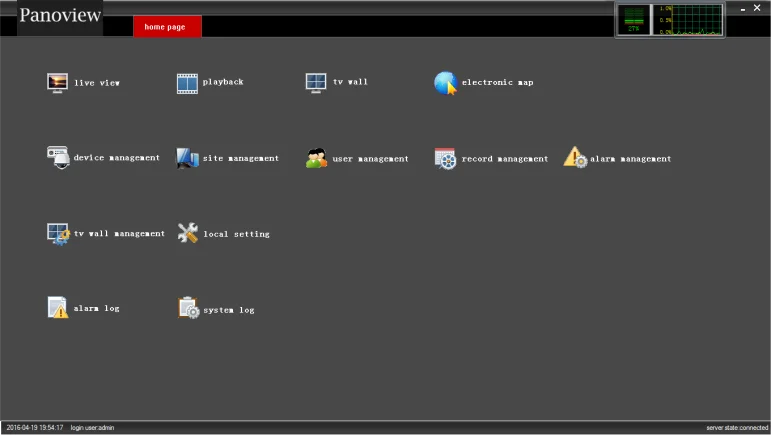

We Ofter a whole System for Clients, Including cameras, sever and software panoview which to Manage Cameras

Serve is based on clients' certain computer


Case Study

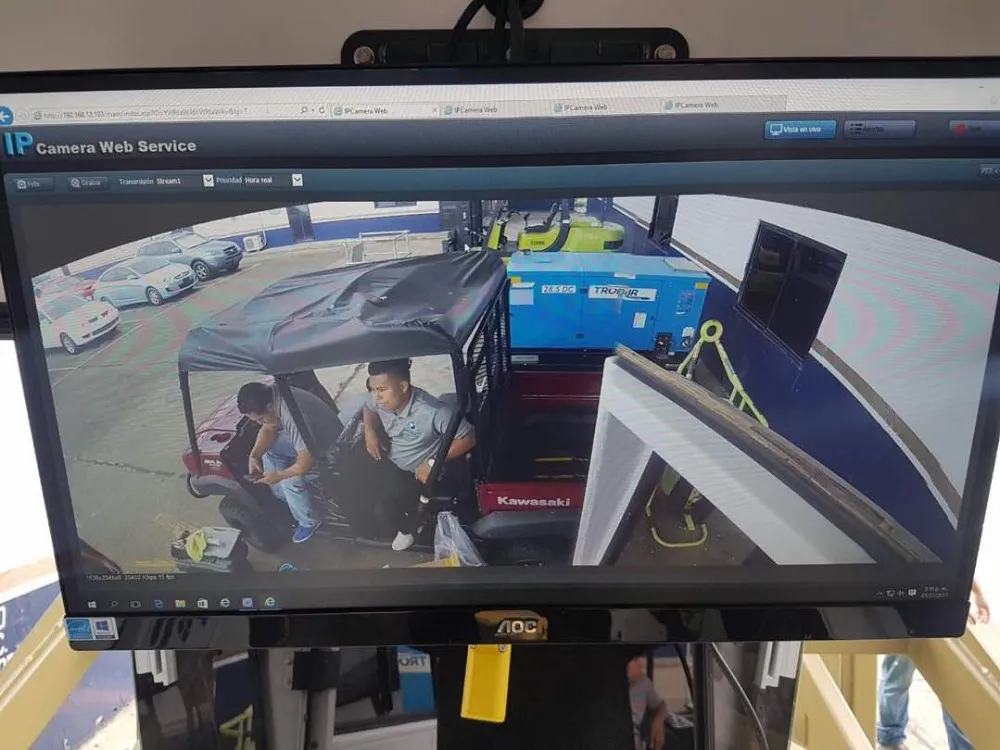

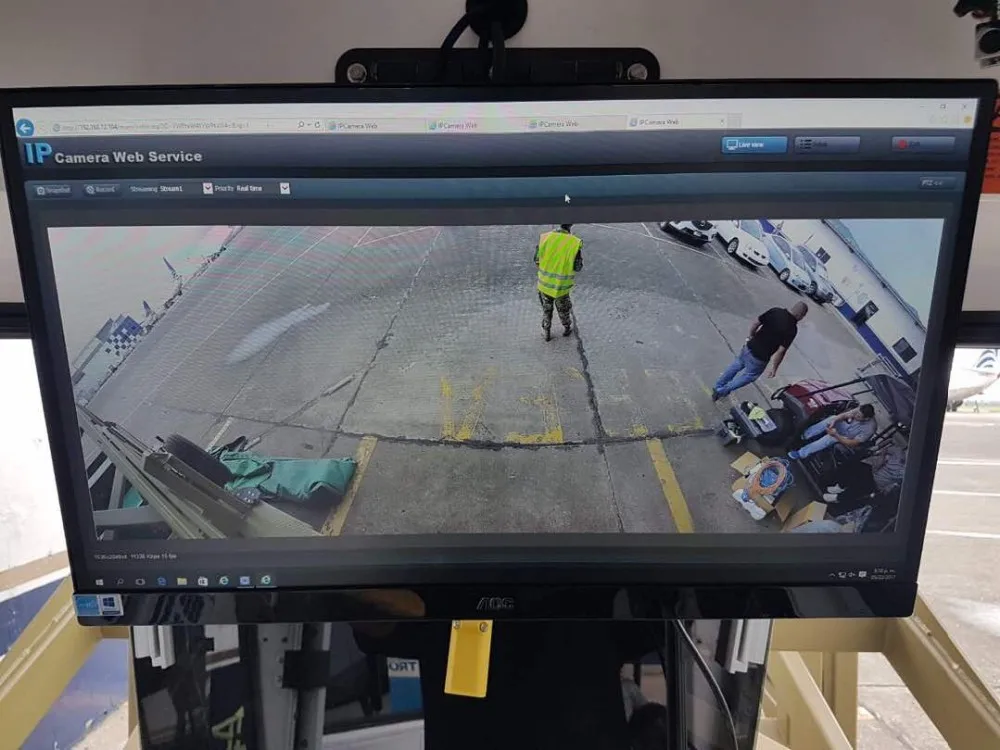

A clients from Panama using 5pcs lens to do an airport project

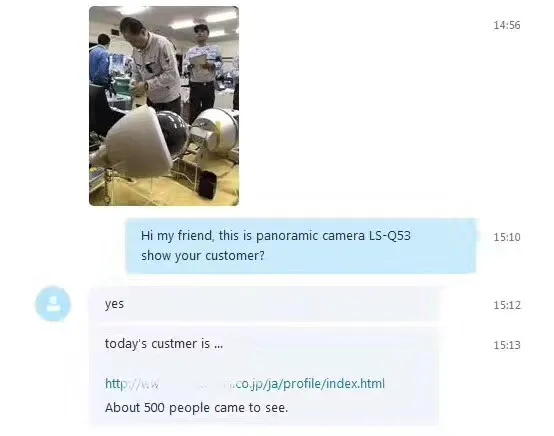

A clients from Japan order 1pcs to show to clients, Feedback very interested to clients, 500 people visit to check

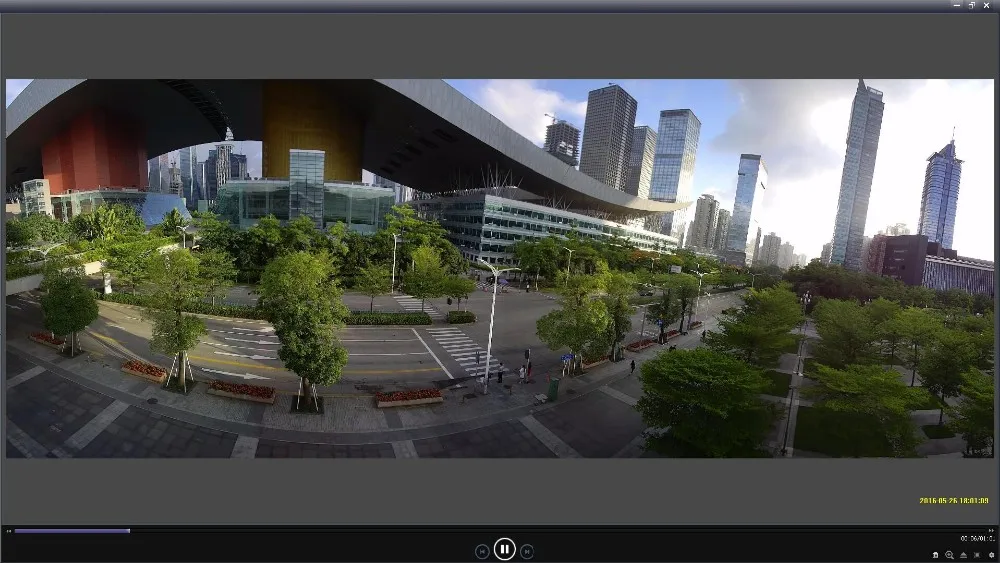

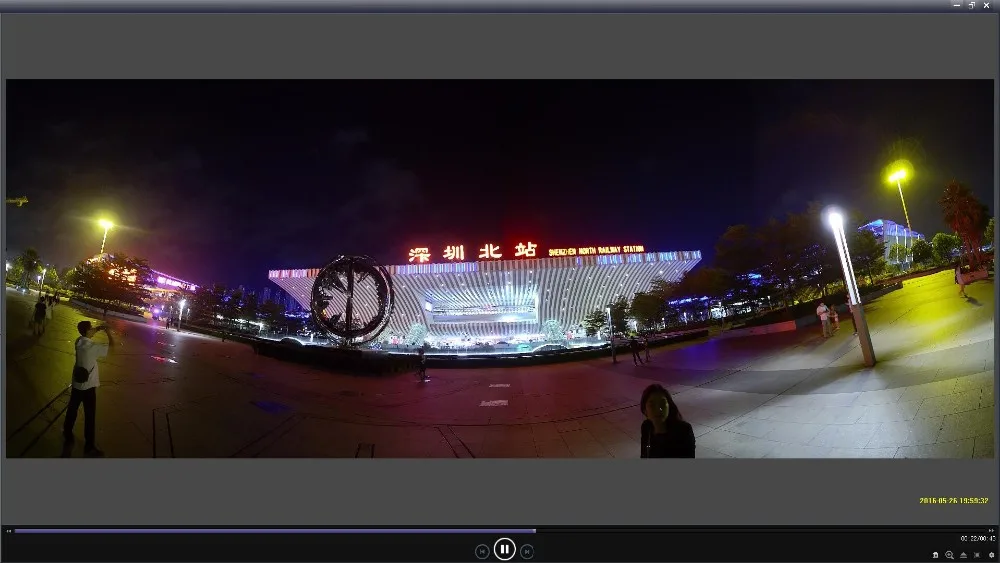

We Installed a 4 Lens 180 degree at Train Station, be shocked at its night vision image


Why choose us
1. Our camera have our unique exterior design with private mold, like LS VISION Saturn Series ip camera;

2. We have 64ch, 128ch nvr, support onvif, it can compatible with many brand ip camera, like samsung, hikvision and dahua

3. we provide CMS management software and app for IP POE camera,Super Starlight IP Camera,bullet ptz, ahd dvr, tvi dvr, nvr and panoramic camera.

4. "Only for quality Life" is our core corporate culture, our camera can be applied to tough environment. (working temperature : -40--70 °C)

5. we offer warranty as long as LS VISION alive.

6.In 2018, We will release the Intelligent security system like the IP Camera with Face recognition function.
