LSVISION 24mp 8x3mp IP66 Panoview 180 360 Degree Wide Viewing Angle IP Dome Camera 24 mp

FOB Reference Price:Get Latest Price
$2,073.40 - $2,211.60 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100
Est. Time(days) 15 20 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-Q83
Type:
IP Camera
Style:
Dome Camera
Sensor:
CMOS, 1/2.8"3.0 MP Pixel progressive scan CMOS
Special Features:
Waterproof / Weatherproof
Product name:
LS-Q83 panoramic ip camera
Lens:
4mm fixed-focus
FOV:
Horizontal:180 ,Vertical:180
Maximum Resolution:
2048*1536*8
Minimum Illumination:
Color:0.1 Lux@(F1.2,AGC ON);B/W:0.001 Lux@(F1.2,AGC ON)
Sensibility:
0.15Lux/F2.0(Color),0.015Lux/F2.0(B/W)
3D Noise Reduction:
Support
Signal to Noise Ratio:
≥50dB
Image Processing:
Auto white balance,automatic again,auto shutter
Technology:
NetWork
Supply Ability
Supply Ability:
3000 Piece/Pieces per Week multi sensors panoramic camera
Packaging & Delivery
Packaging Details
1pcs/ctn
panoramic ip camera with 8 lens
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100
Est. Time(days) 15 20 30 To be negotiated
Video Description
Product Details

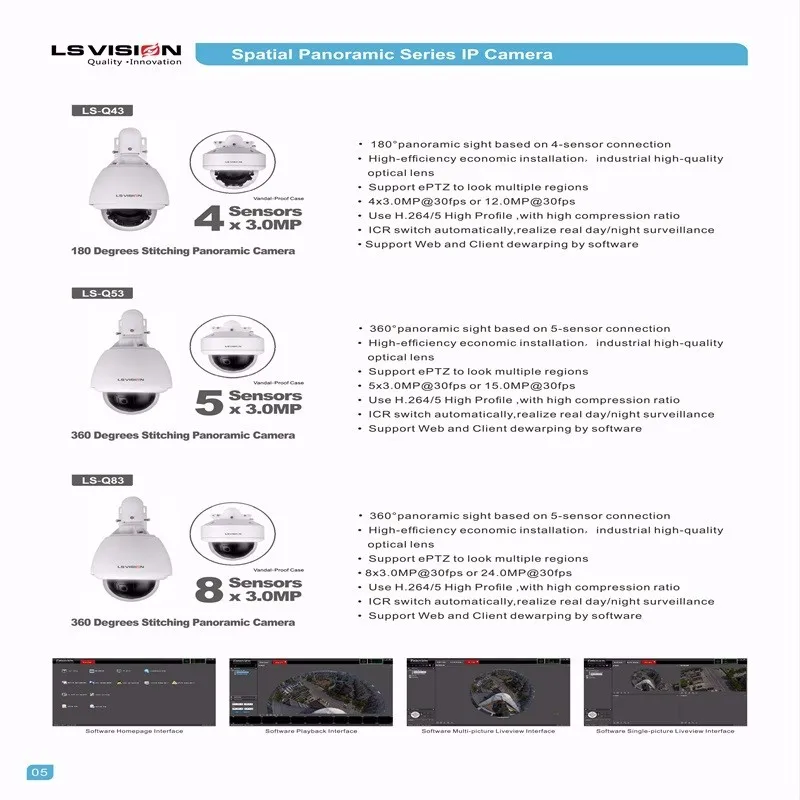

LS-Q83 8 Lens Multi Image 24MP 360 Degree Panoramic IP Camera

Key Features:

1.Based on 8 sensor patchwork of 360 ° panoramic view
2.Efficient economic standalone installation mode
3.Industrial-grade high-quality optical lens
4.8 x3.0mp 30 FPS or 15.0 MP MP @ @ 30 FPS resolution
5.To adapt to the different temperature and humidity of outdoor scene

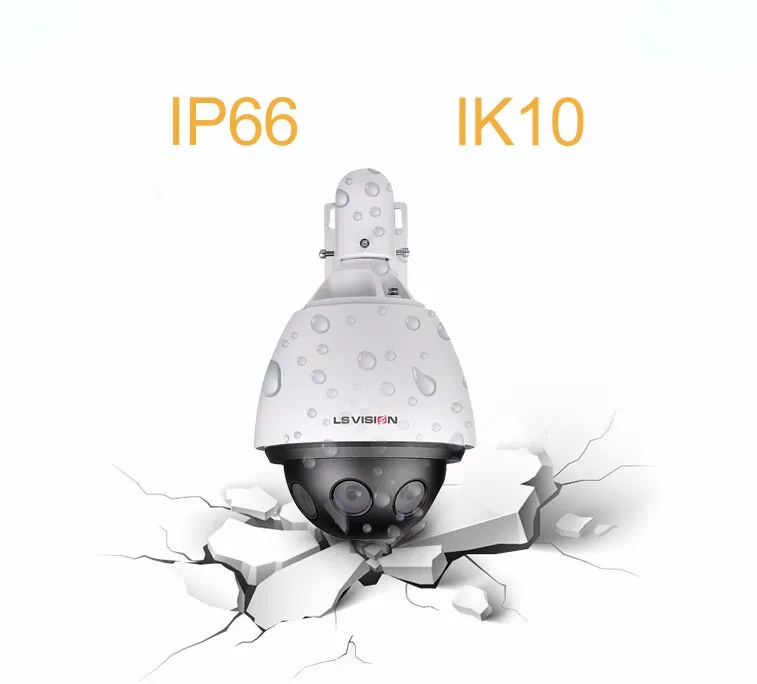

6.Support level IP66 waterproof and dustproof, IK10 riot level design


24mp 8 lens 180 360 degree Panoramic IP Camera LS-Q83
DSP
Hisilicon Series High Performance DSP
Sensor Type
1/2.8"3.0 MP Pixel progressive scan CMOS
Number of Sensor
8
Electronic Shutter
Manual/Auto;1/5s to 1/50,000s
Min Illumination
Color:0.1Lux @ F1.2 AGC On B/W:0.001Lux@ F1.2 AGC On;
Lens
4mm fixed-focus
Viewing angle(H)
360 degree

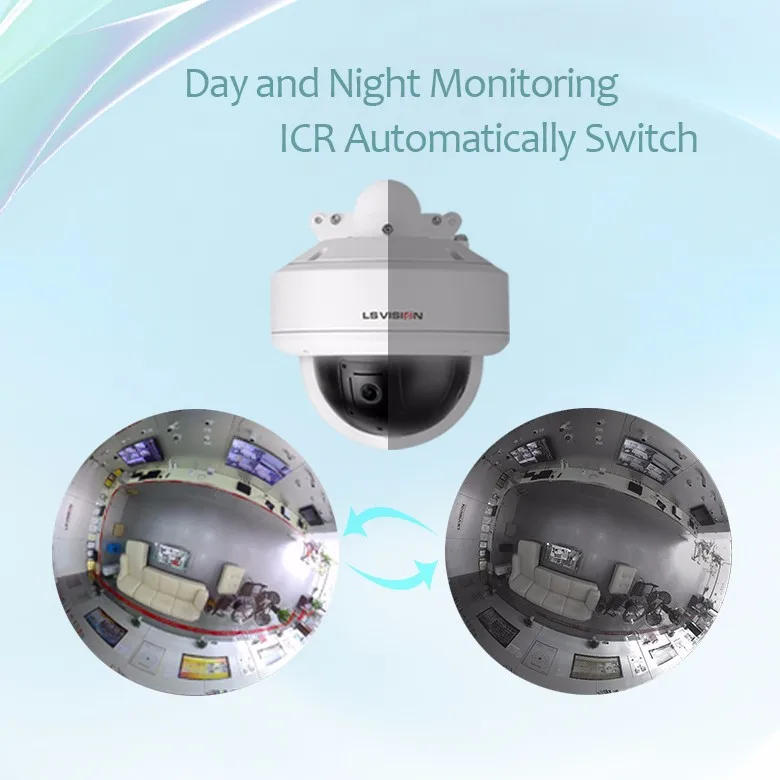

D/N
Day / Night Mode
Noise Reduction Mode
2D / 3D
Encoding Standard
Video Compression
H.265/H.264
Coding standard
H.265/H.264 Baseline/MainProfile/HighProfile Optional
Video compression rate
800kbps~48Mbps
Image Index
Max Image Size
24.0MP / 8 x 2048x1536 (HDTV)
ePTZ
Electronic Pan / Tilt / Zoom
Frame Rate
8 x 2048x1536 @ 25fps (Pal) / 30fps (NTSC) ;
SN
≥50dB
Image Setup
Auto white balance, Auto Gain, Auto Shutter
Network Function
Intelligent Alarm
tampering alarm, network disconnect, storage exception
Protecol
IPv4/IPv6,RTSP/RTP/RTCP,TCP/UDP,HTTP,DHCP,DNS,FTP,DDNS,PPPoE,SMTP,Banjour
Interface Protocol
Onvif V2.6 / CGI / SDK
General Function
One-key recovery
Function Interface
Network Port
1 * RJ45 10M/100M/1000M Self-adaption Ethernet port
Serial interface
RS485
Alarm interface
1 * input/output
General Specification
Operating Conditions
-40℃ ~ 60℃, humidty less than 95% (No condensation)
Power Supply
DC24V±10%,
Power Consumption
18W
Water-proof Level
IP66
Impact-resistant Level
IK10
Dimensions(mm)
Φ228 x 330mm
Weight (kg)
3.8 (net weight)

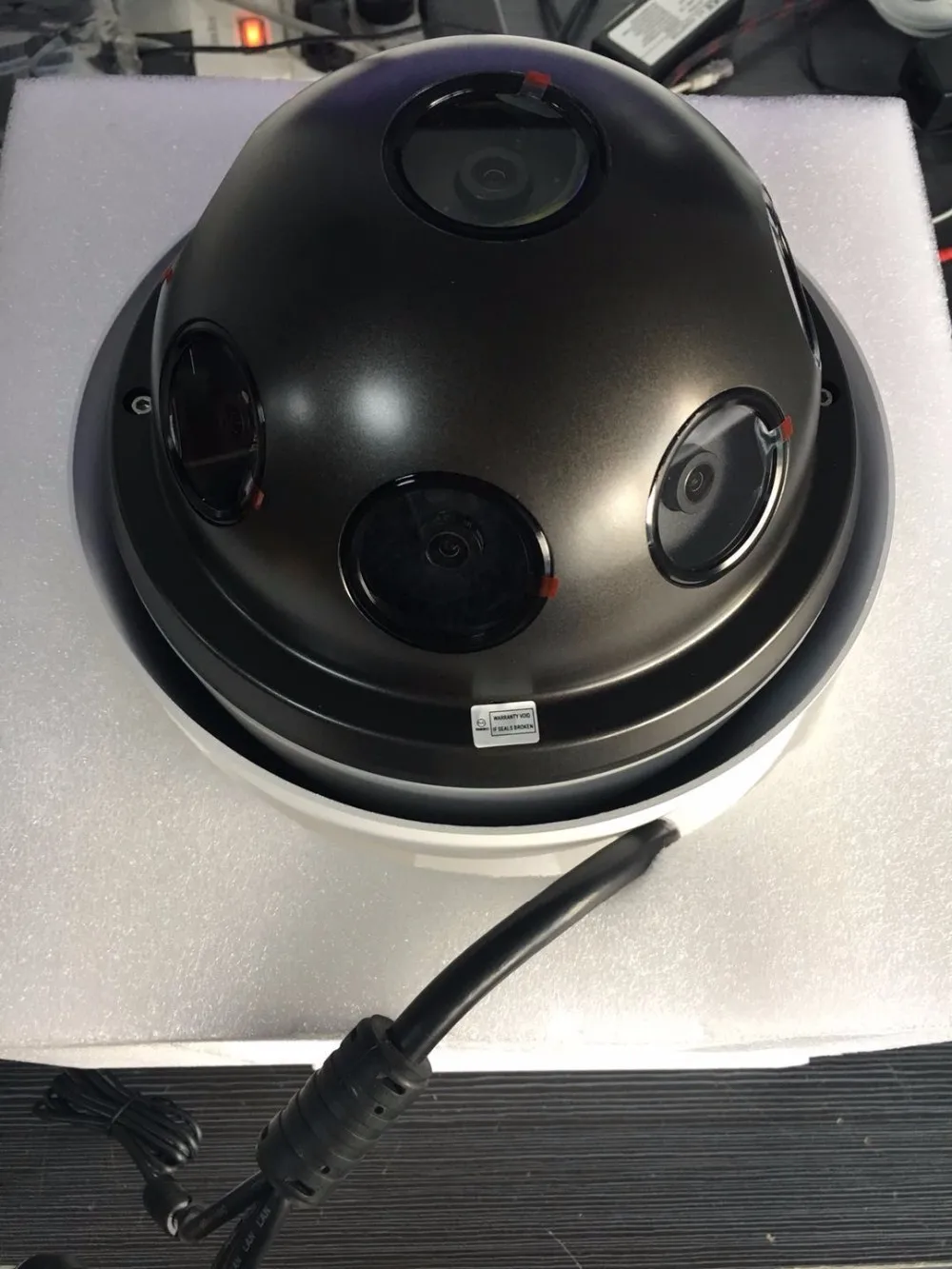

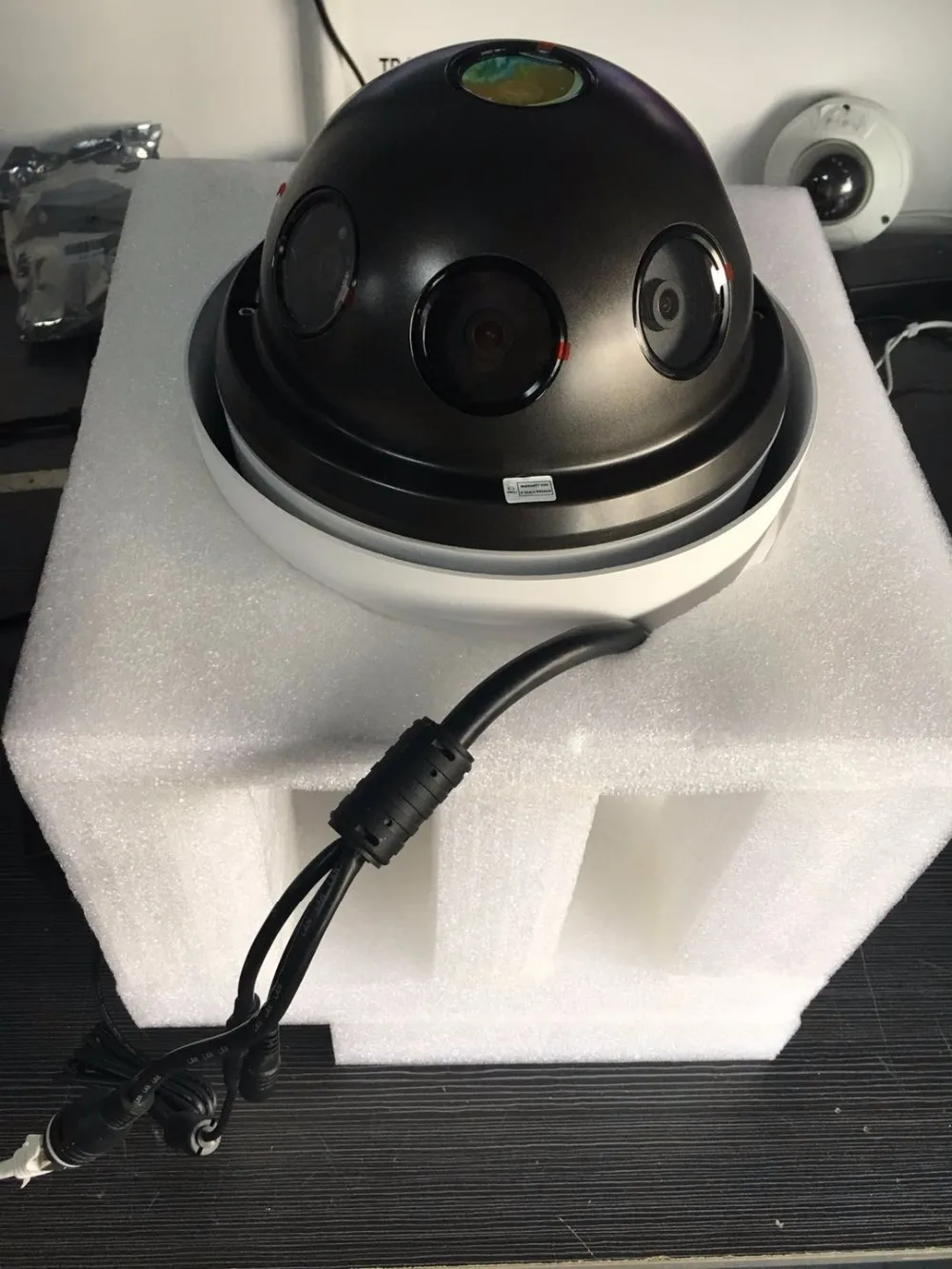

This is not a normal traditional panoramic camera. It's multi-sensor 8 lens camera each 3 Megpaixel. Our software makes all 8 lens to one streaming.
It has 4 different video models:
180degree video split
360degree video split
orignai in 5 video picture
360degree round view

D-PTZ , move your mouse to any area you like. 3MP zoom in and out shows great details.

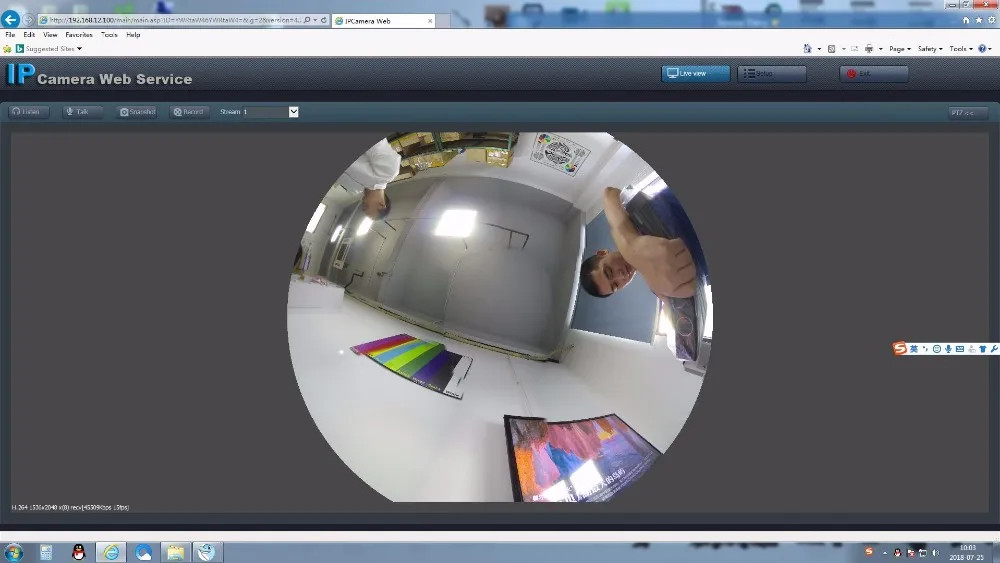

IE Web GUI

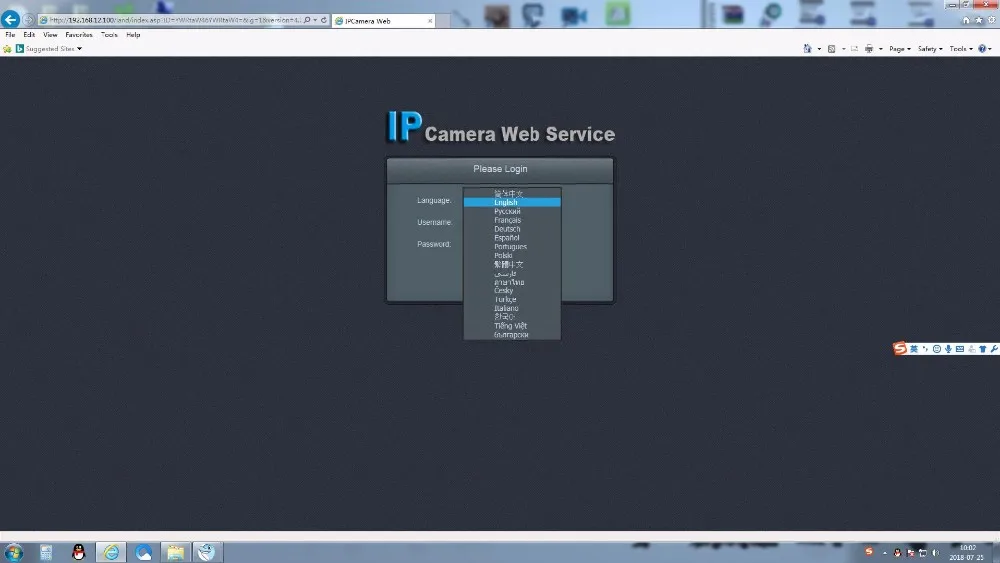

1, At first please type the IP address of the panoramic camera directly on the IE browser of the computer, for example, 192.168.1.100, then choose the language you like, user name and password is: admin, then log in.

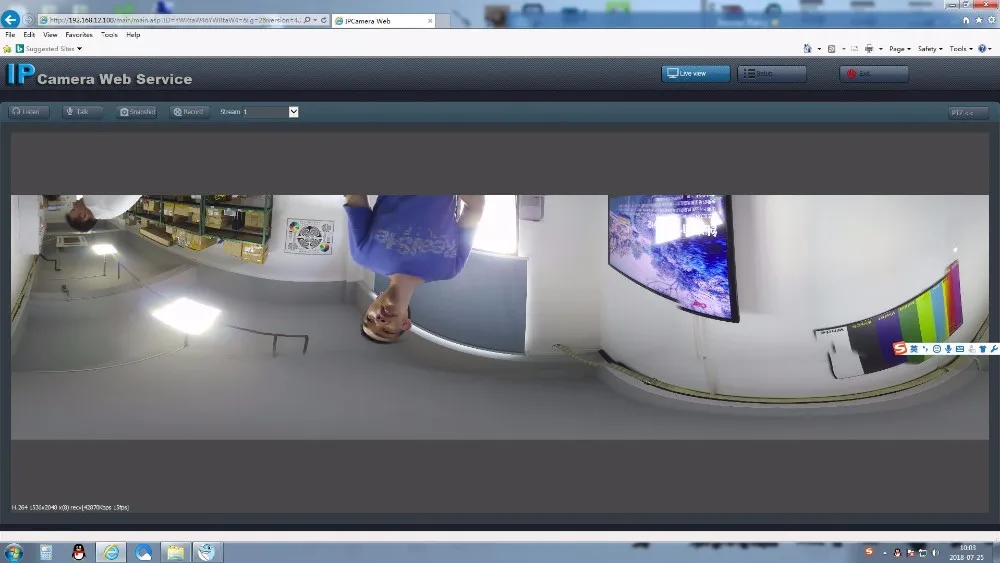

2, From the Live view, you can choose the different viewing modes, like single image, 5 images, 360 degree images.

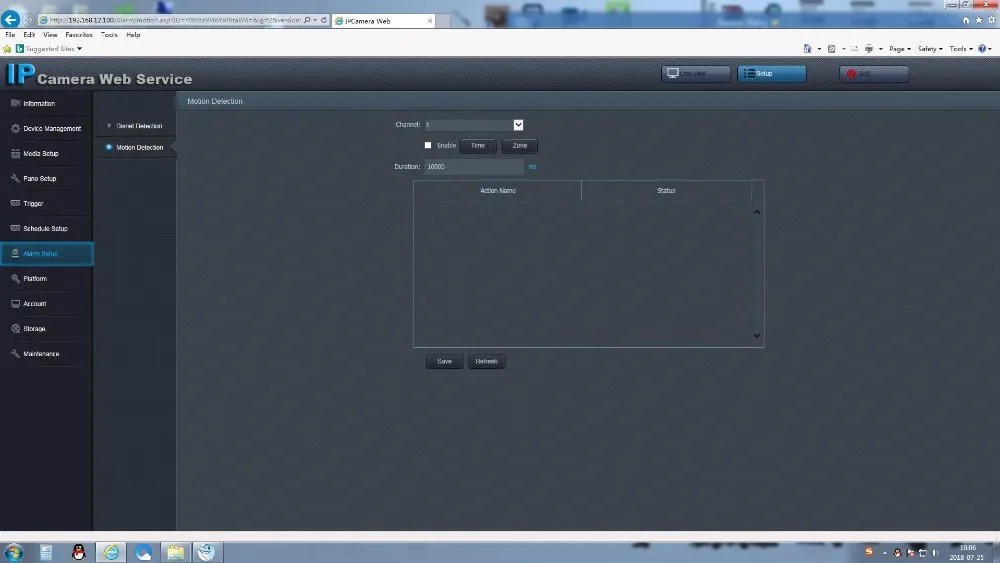

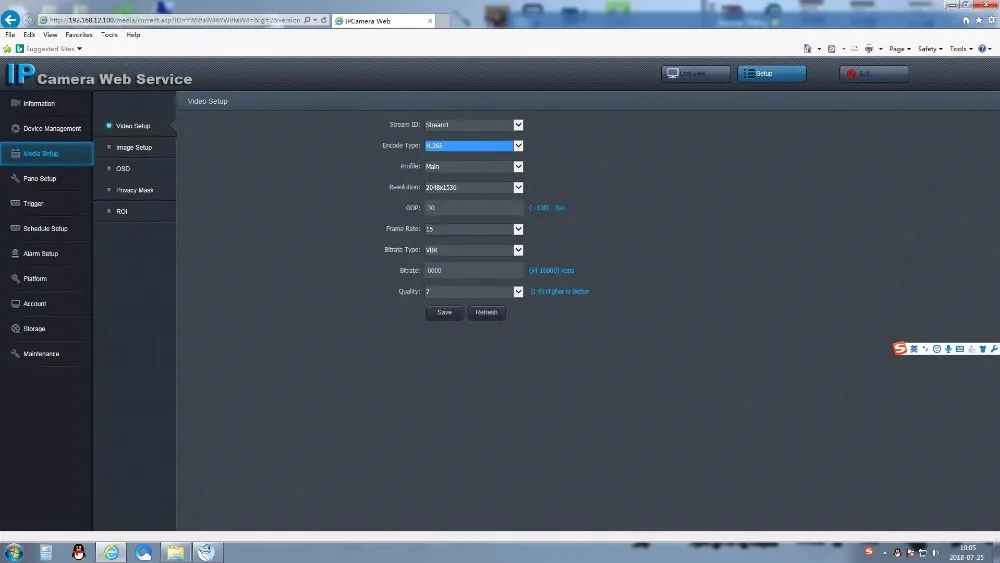

3, Click setup at the left up side, you can see all the settings of the camera. Please click each part of each detail to learn more of our camera.

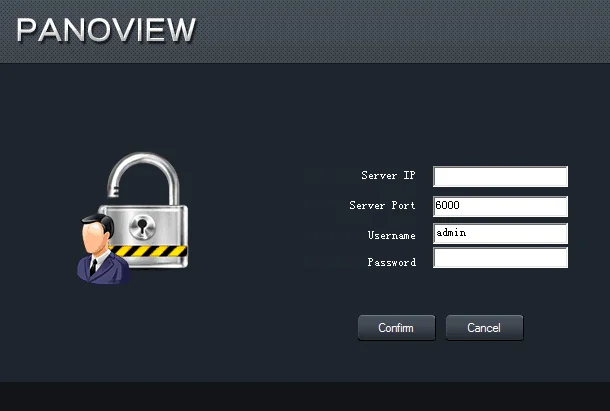

PC Client GUI
More details

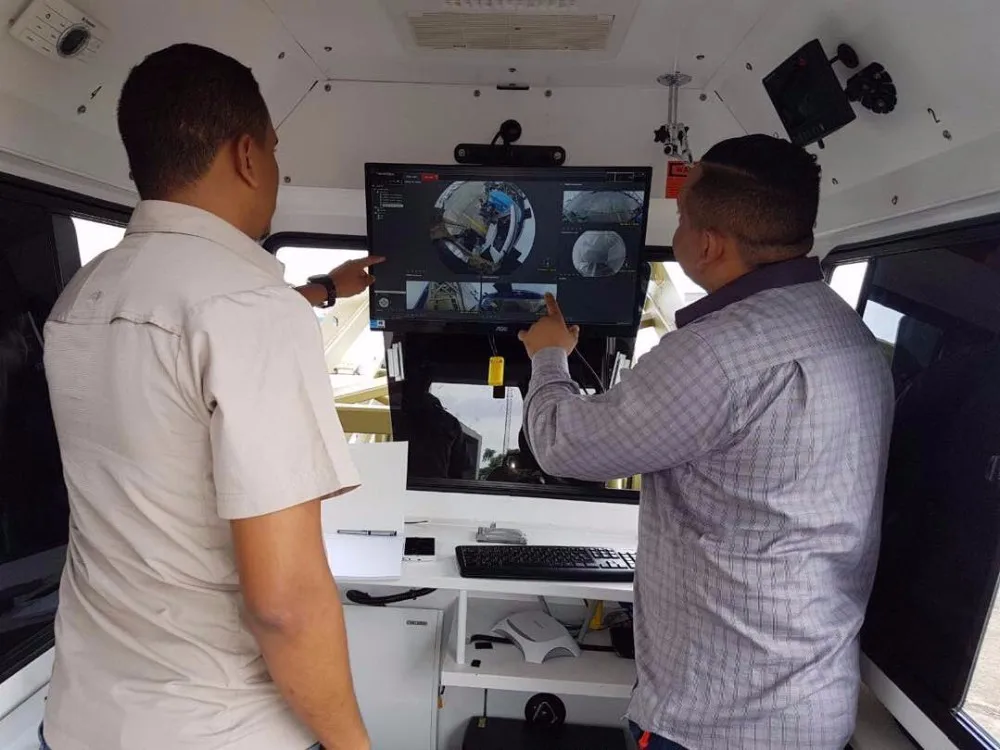

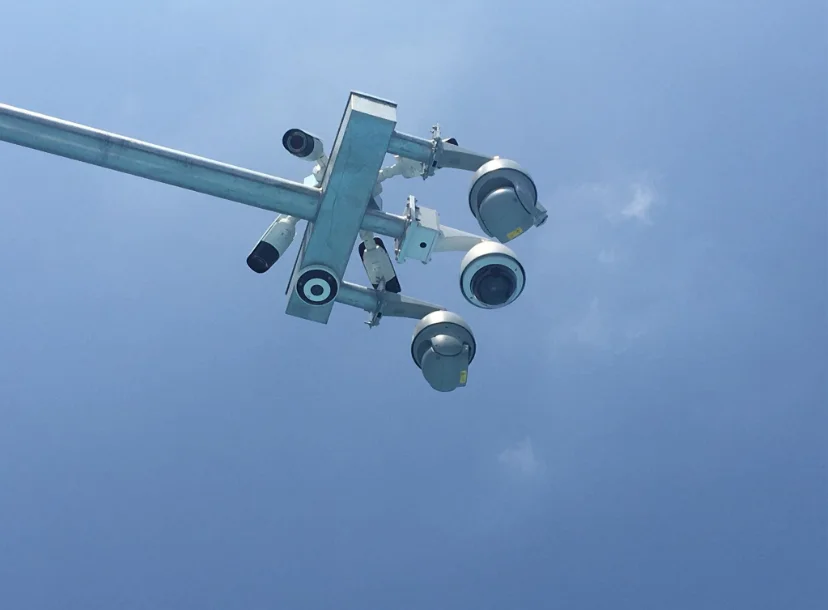

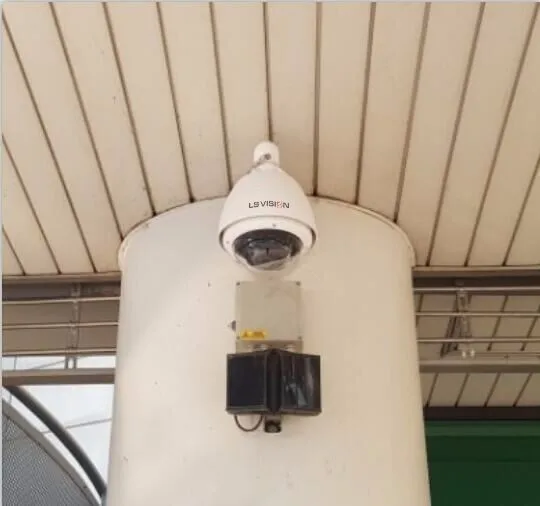

Customers' Installation Project
