LSVISION HD 1080P Outdoor POE IP Security Camera Face Tracking Auto Zoom CCTV Camera Recognition System

FOB Reference Price:Get Latest Price
$839.00 - $923.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100
Est. Time(days) 7 13 18 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LSVISION
Model Number:
LS-FR001
Type:
IP Camera
Special Features:
Waterproof / Weatherproof
Sensor:
CMOS, Hi3519+1/1.8" 2.0MP Sony385 CMOS
Style:
Bullet Camera
Product type:
IP Camera Face Recognition
Video Standard:
H.265/ H.264
AI Analysis:
Face capture and recognition
Waterproof:
IP66
Interface Protocol:
ONVIF
Alarm:
Support
Operating Temperature:
-30 ℃ ~70 ℃
Power Supply:
POE
Motorized lens:
9-22mm
Technology:
NetWork
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week IP Camera Face Recognition System
Packaging & Delivery
Packaging Details
Box/CTN.
IP Camera Face Recognition System
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100
Est. Time(days) 7 13 18 To be negotiated
Video Description
Product Description

IP Camera Face Recognition

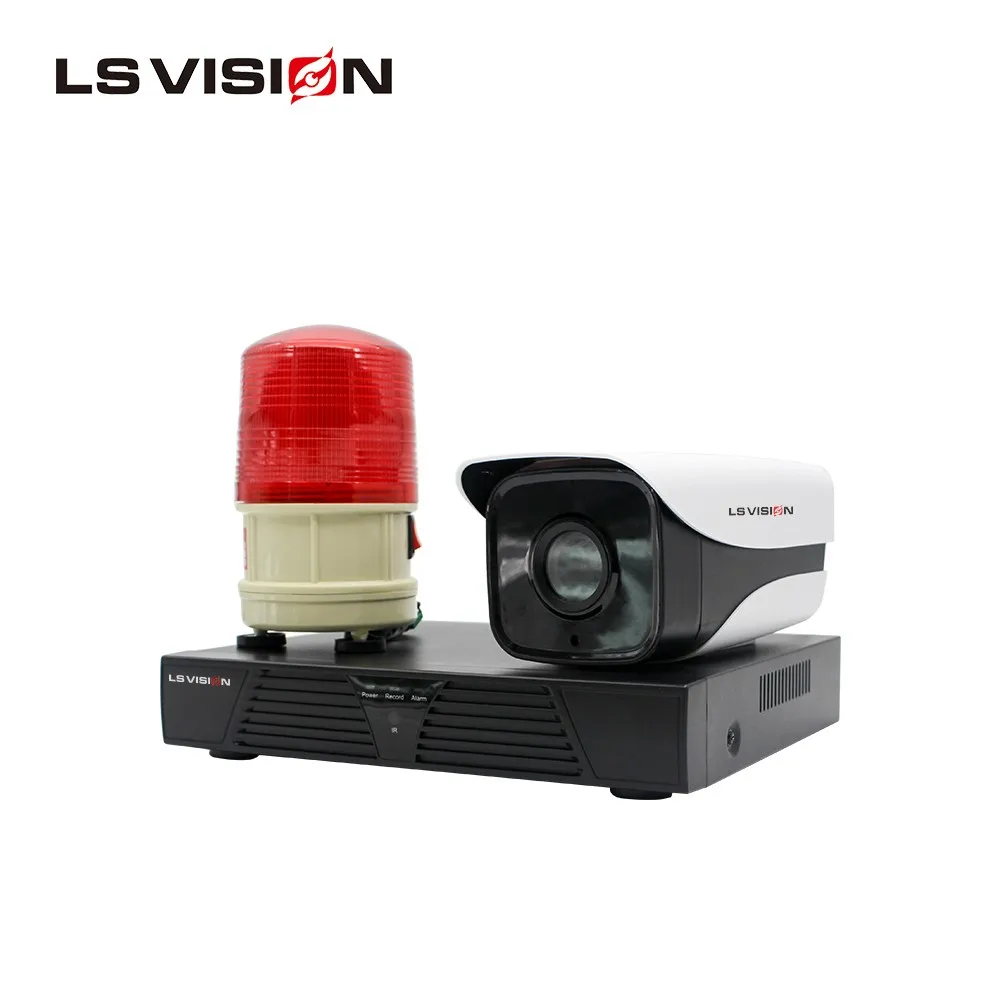

"store safety" face recognition kit
Specially designed for small shops and facades , a ALL-IN-ONE face recognition application integrated kit,
can be used to prevent thieves, burglar theft, anti - theft, dangerous personnel early warning, is your
shop safety stewardship!

Detailed Images

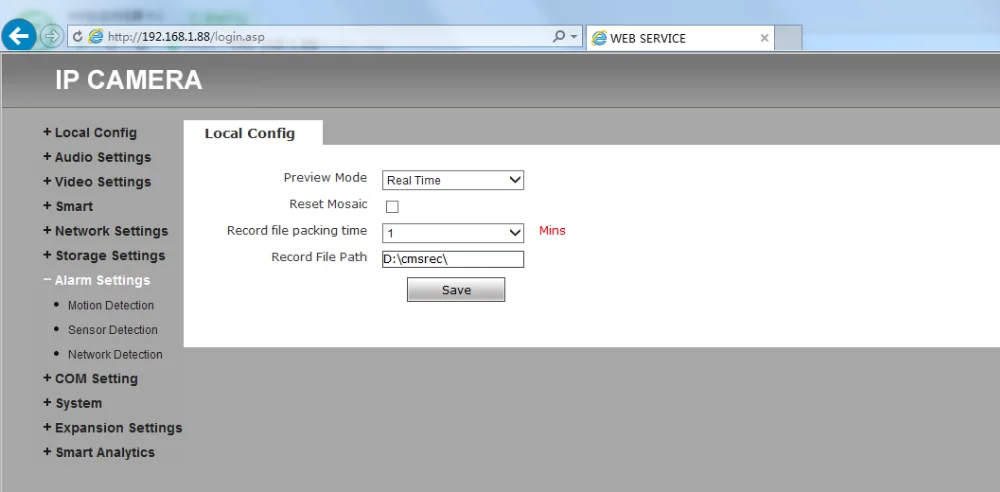

IE Interface:

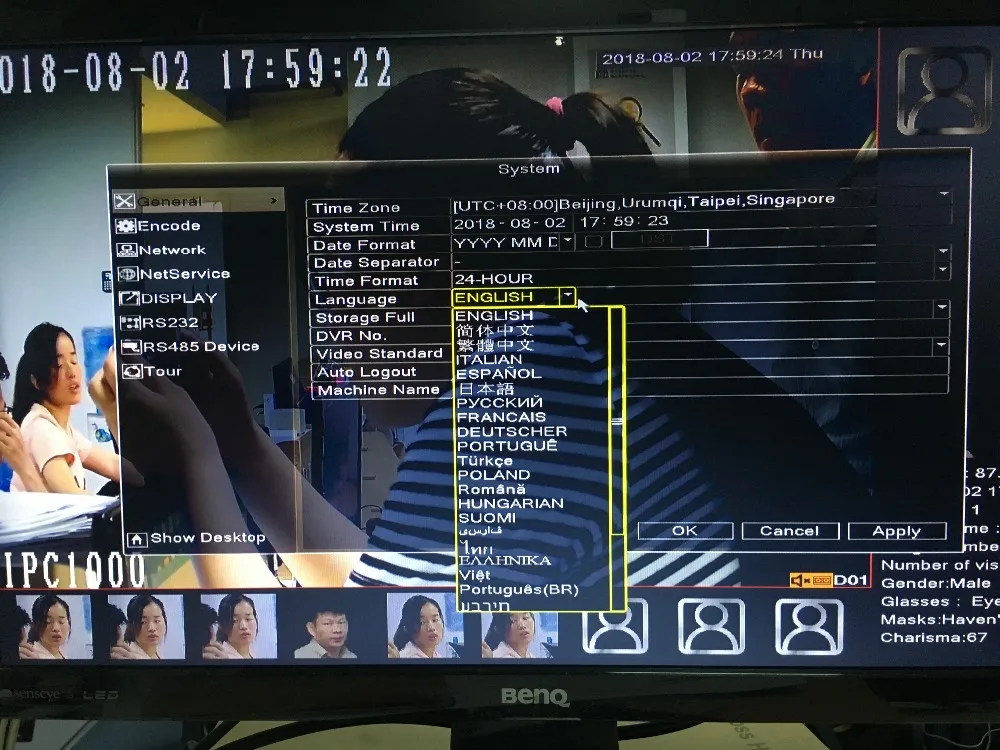

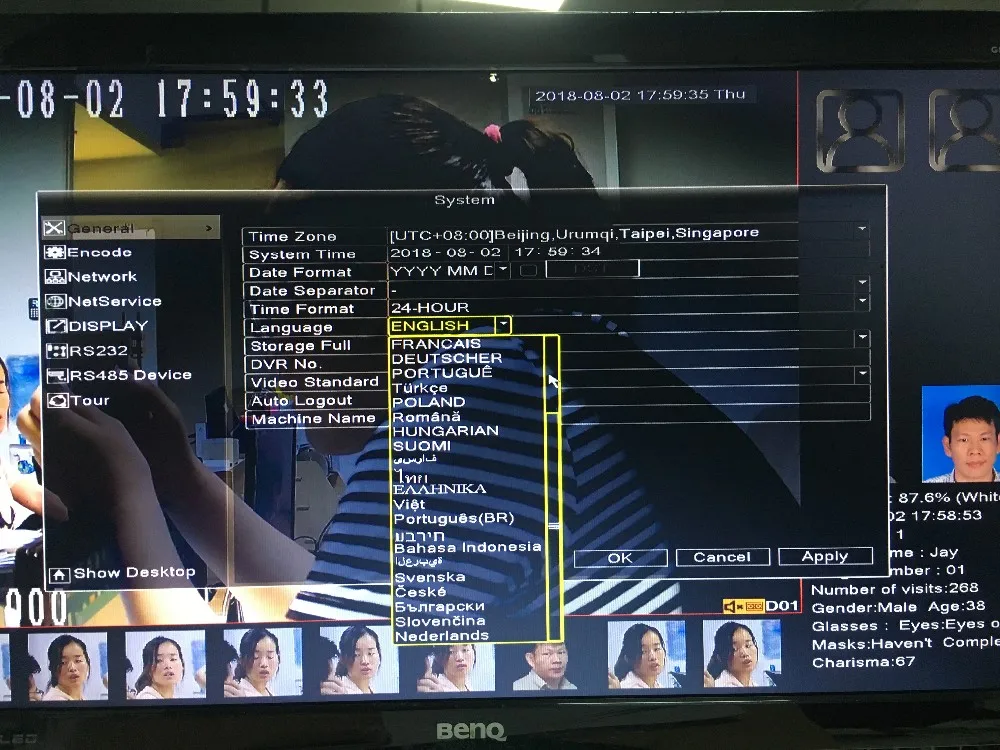

Support Multi languages

Specification

Professional intelligence function


·Embedded smart face algorithm, which supports face capture in complex environment.

·Support face tracking, face exposure mode, and face automatic filtering.

·Support front-end face alignment.

·Support the detection, tracking, snapping, grading, screening, feature extraction and recognition of moving faces, and outputs the best alignment results.

·Supports the detection of up to 32 targets per frame and the recognition speed is fast.

·The face capture scenes are backlighting scenes and ordinary scenes for backlighting and normal

environment respectively. Two modes can be set up.

·Aiming at the optimization of face application scene, it is suitable for face detection, feature extraction and recognition.

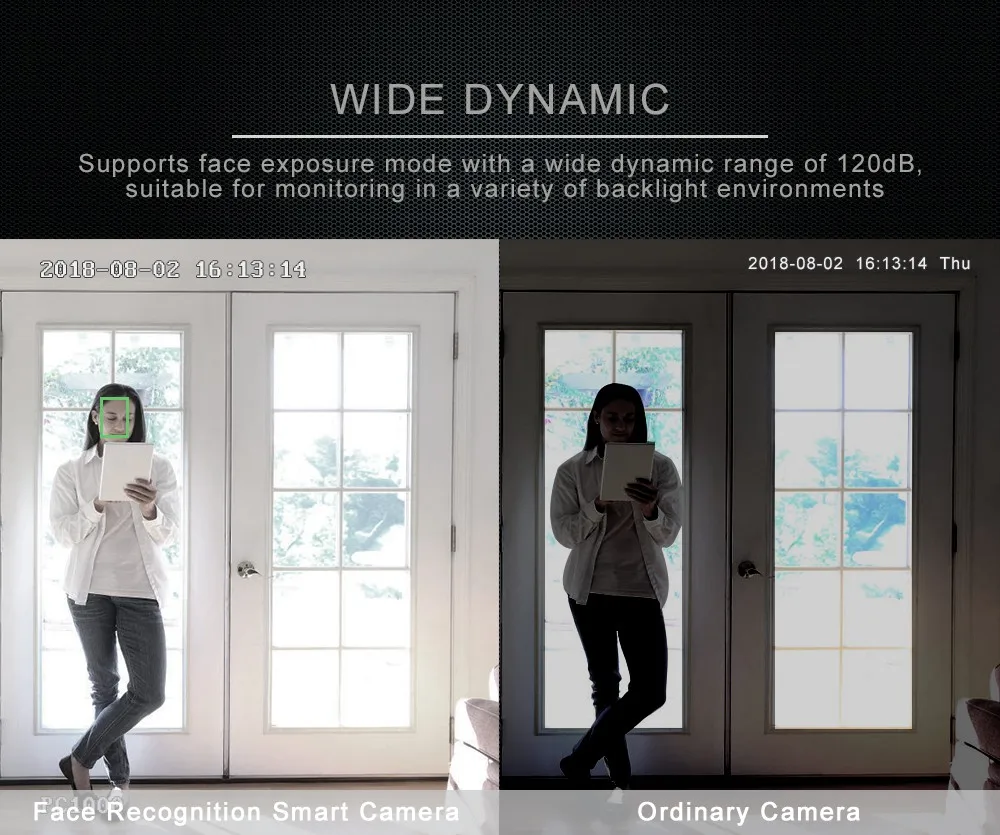

·Support face exposure function, wide dynamic range of 120dB, suitable for monitoring under backlight environment;

· Support area selection of face recognition; multi parameter setting, face parameter setting, professional level capture rate;

·The setting range of facial image quality (1-99) is adjustable.

·Support face detection with more than 30*30-300*300 pixels.

·Support the upload of face pictures and original pictures, and the quality of face picture coding can be adjusted.

·The number of supporting snapshots can be set up.

·Supports the management of up to 3 people's face databases, and each face library supports more than 3200 face importing.


General Function

·The maximum resolution is up to 2 million pixels (1920 x 1080), and can output real-time 30fps images at this resolution, and the image is more fluent.
·Scan CMOS by line by line to capture motion images without aliasing
·Adopt the latest standard H.265 video compression technology, high compression ratio, accurate and stable code flow control.
·Built in automatic day and night type dual filter switching mechanism, with manual or automatic color to turn black and other switching mode.
·Support digital wide dynamic, 3D digital noise reduction function
·A variety of white balance models, suitable for various scenarios.
·Support Onvif protocol, national standard GB28181

Camera parameters:

Sensor type
1/1.8" Progressive Scan CMOS Sensor
Electronic shutter
1/25s~1/10000s
Minimum illuminance
Color 0.001Lux at F1.2;Black and white 0.0001Lux at F1.2;
Signal-to-noise ratio
≥50dB(AGC OFF)
Wide dynamic range
≥120dB
De-noising
3D digital noise reduction
Lens type
3.6-11mm F1.4, horizontal field angle 106.8 degree ~44.2 degrees.
Video compression standard
H.265+/H.265/H.264/MJPEG
H.265 encoding type
Main Profile
Video code rate
32 Kbps~16Mbps
Audio compression format
G.711a/ G.711u/G.726
Image settings
can adjust brightness, contrast, saturation, sharpness, white balance; AWB (automatic white balance), AGC (automatic gain), AE (automatic exposure control); support for privacy area occlusion; OSD superposition; image rotation: normal 90 / 270 degree automatic, manual or automatic color blackening and other switching modes
The maximum image size
1920 × 1080
Video resolution/main stream
1080P(1920×1080)/1280×720
Video frame rate
50Hz: 50fps (1920×1080,1280×960,1280×720)

60Hz: 60fps (1920×1080,1280×960,1280×720)
Character superposition
suport
Smart encoding
supports low bit rate, low latency, ROI region of interest enhancement coding, and supports 4 ROI regions.
Smart detection
supports occlusion detection, defocus detection, luminance detection, color detection, sound detection, remnants detection, mobile detection, virtual cordon, regional intrusion
Smart control
supports intelligent control alarm opening, alarm closing, fault clearing, intelligent noise reduction.
Intelligent analysis

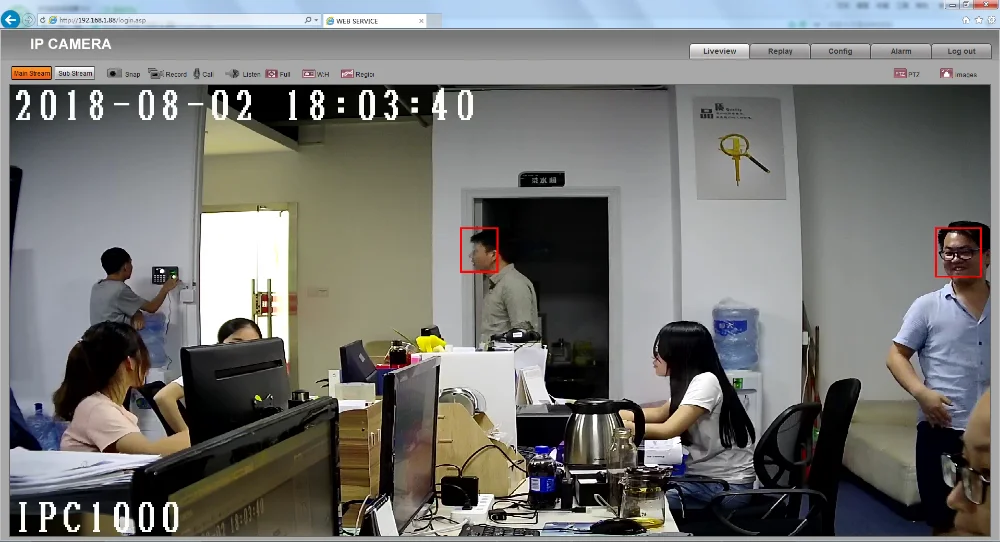

face capture, face tracking and face automatic filtering
Picture format
capture pictures using JPEG coding
The sensitivity
0-10 adjustable, the lower the sensitivity, the higher the image quality.
Area settings
support face recognition area selection
Upload mode
private protocol, hokang protocol, FTP upload

NVR parameters:

Master control
Hi3520DV200
Operating system
embedded Linux operating system
Decode type
H.264
Video access
4 road 1080P/8 road 960P
Replay
1 road 1080P/1 road 960P
Compression mode
G.711A
speaking
Do not support
Video recording
manual recording, alarm recording, dynamic detection, video recording, general video recording.
Video query
channel retrieval, calendar retrieval, event retrieval, time retrieval
Record Storage
local hard disk storage
Backup mode
USB backup
VGA interface
1
HDMI interface
1
USB interface
2 USB2.0 interface
Hard disk
1 SATA interface (single maximum support 4T hard disk)
Network interface
10M/100M adaptive Ethernet port
Network protocol
1 channel audio input (MIC IN/Line IN); 1 way audio output interface
Power
12V/2A
Power
<10W(without hard disk)
Working temperature
-10°C ~60°C
Working humidity
10% ~ 90%RH
Size
260*43*190mm
