LS VISION High Speed Dome 360 Degree 15MP 5 Lens Panoramic Rotation CCTV Camera

FOB Reference Price:Get Latest Price
$1,028.60 - $1,098.60 / Piece | 1 Piece/Pieces 360 Degree Rotation CCTV Camera (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-Q53
Type:
panoramic camera
Style:
High Speed Dome
Sensor:
CMOS
Special Features:
Waterproof / Weatherproof
DSP:
HI3516D+SONY IMX123
Sensor Type:
1/2.8" Progressive Scan CMOS
Number of sensor:
5
Electronic Shutter:
Manual/Auto;1/5s to 1/50,000s
3D Noise Reduction:
Support
Lens:
F2.8mm/F1.8
Viewing angle(H):
360
D/N:
Day / Night Mode
Noise Reduction Mode:
2D/3D
Max Image Size:
15.0MP / 5 x 2048x1536 (HDTV)
Technology:
NetWork
Supply Ability
Supply Ability:
3000 Piece/Pieces per Week 360 Degree Rotation CCTV Camera
Packaging & Delivery
Packaging Details
360 Degree Rotation CCTV Camera
Port
shenzhen
Lead Time :
Shipped in 7 days after payment
Product Description


LS VISION High Speed Dome 360 Degree 15MP 5 Lens Panoramic Rotation CCTV Camera

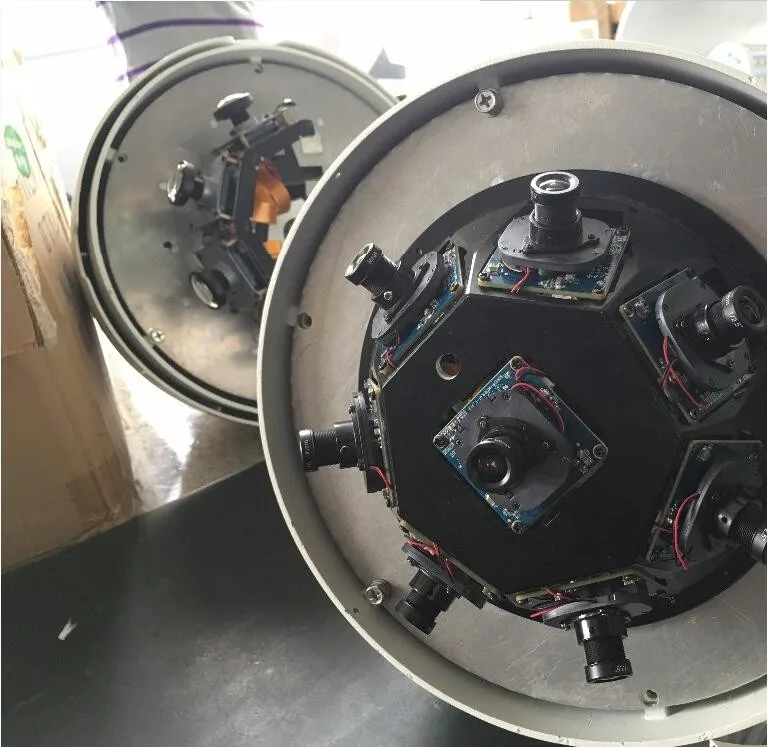

Based on 5 l sensor patchwork of 360 ° panoramic view


Efficient economic standalone installation mode


Industrial-grade high-quality optical lens





To adapt to the different temperature and humidity of
outdoor scene


Support level IP66 waterproof and dustproof, IK10 riot level design



Specification
15MP 360º Panorama
Sensor
1/2.8” Progressive Scan CMOS
Minimum Illumination
Color:0.01 Lux@(F1.2,AGC ON);B/W:0.001 Lux@(F1.2,AGC ON)
Lens
F2.8mm/F1.8
FOV
Horizontal:360º,Vertical:180º
3D Noise Reduction
Support
Signal to Noise Ratio
≥50dB
Image Processing
Auto white balance,automatic again,auto shutter
Video Compresion Standard
H.264,H.264 coding,support Baseline/Main Profile/High Profile
Maximum Resolution
2048×1536×5
Resolution and Frame
Main stream:

50Hz:25fps 2048×1536×5

60Hz:30fps 2048×1536×5

Sub stream:

50Hz:25fps 288×352×5

60Hz:30fps 240×352×
3D Operation
Fastly choose any monitor angle through mouse operation to control zoom in and zoom out
Programmatic Interface
ONVIF,CGI,SDK
Network Protocol
TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTCP, RTSP, SNMP, 802.1x, UPnP, DDNS, SMTP, Bonjour
Peripheral Interface
General
Onekey Recovery
Network Interface
Built in RJ45 ethrnet port,support10M/100M/1000M network data
Serial Interface
RS485
Alarm Input /Output
1 channel alarm input and output
Work Temperature and humidity
-40℃~60℃/95%RH
Protection Level
IP66,6000V lightning protection ,surge protection,IK10
Power/ Consumption
DC12V,Maxium power consumption ;20W
Installation Way
Hoisting,Wall mounting
Dimension
Φ228×330mm
Weight
4.0kg
Applications
LS VISION Info

Why LS VISION will be your first choice in the market?



LS VISION Technology Co., Ltd. (Own Brand: LS VISION). LS VISION is China No.1 IP Camera professional Supplier for Tough Environment. LS VISION always uphold the corporate culture – “Only for Quality Life” and focused on quality and service. Aim to provide top quality security products, professional service and best customer experience.

LS VISION main product include High Quality IP Camera, HD Network Camera, PTZ Camera, AHD Camera, HD-TVI Camera, AHD DVR, TVI DVR, Hybrid Camera Dvr, HD NVR, and WIFI NVR Kits etc.

LS Vision established since 2012, with fast growing, so far we have 20 engineers R&D team, 20 person sales team and 10 marketing team. LS VISION factory has around 30 workers in production line. and the production capacity can be 15,000pcs in each month. LS Vision's products are widely used in many fields, such as banking, public security, energy infrastructure, telecommunication, intelligent-building, and intelligent-transportation.


Now our team is keeping on research new products, Such as 4K H.265 IP Camera, Starlight IP Camera, 360 degree Panoramic IP Camera and body camera.

OEM and ODM service will be provided beyond your imagine.

LS Vision is definitely a worthwhile cooperation for you.

Certification
Global Agent
Successful Case

In Arabia, in Australia, in Philippines, in New Zealand, in korea,in the underground parking , in large shopping malls, in the wild...Day and night,the world is in our eyes, waiting for you to witness with LS-VISION!
