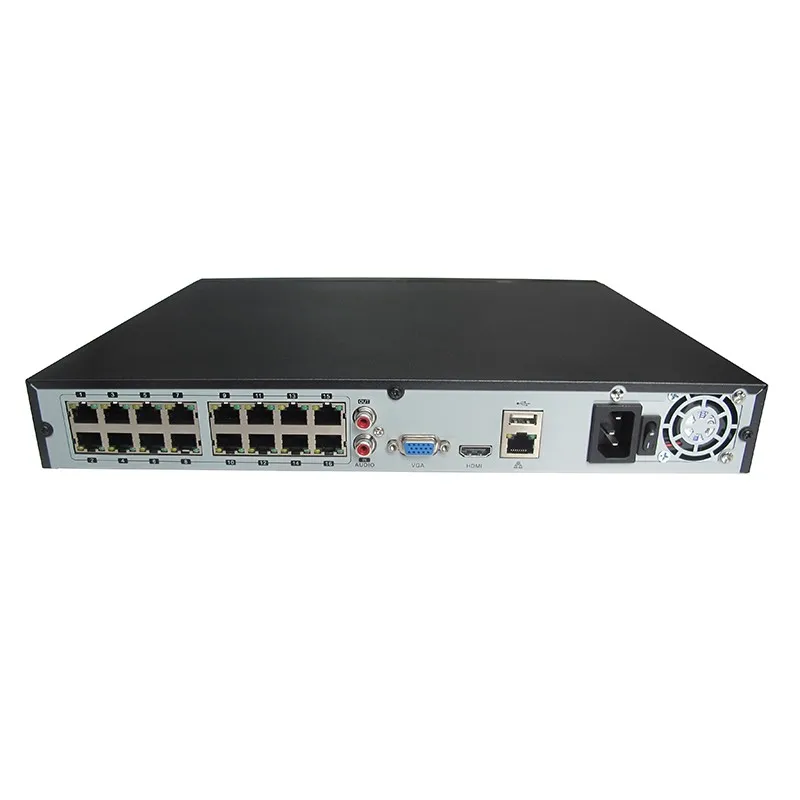

LSVISION H.265 5MP 2HDD NVR 16ch POE Support P2P Onvif2.4 Face Detection Voice Intercom

FOB Reference Price:Get Latest Price
$205.20 - $218.30 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-NF5216P
Type:
NVR
Style:
Metal
Sensor:
CMOS
Special Features:
Black color
OS:
Embedded Linux
Master chip:
Hi3536
Access Bandwidth:
192M
HDD:
2 SATA
IPC Input:
(Up to 16CH 1080P@8M)
Audio output:
1CH,BNC(Line out,2Vpp,300ohms)
Network Interface:
1 RJ45 10M/100M/1000M adaptive Ethernet interface
Power Supply:
110V~220V±10% 47Hz~63Hz
Working Temperature:
-10℃--+55℃
Consumption:
10W(without HDD and POE)
Technology:
NetWork
Supply Ability
Supply Ability:
3000 Piece/Pieces per Week 16ch POE NVR
Packaging & Delivery
Packaging Details
1pcs/ctn, H.265 16ch POE NVR 2HDD
Port
shenzhen
Lead Time :
Shipped in 7 days after getting the payment
Product Description

Key Features:

High performance and industrial-grade SOC chip with low power consumption and steady system. Triple watchdog circuit protection system ensures no crashes phenomenon.

With embedded Linux system, a 16-bit colored image enhancement technology, a consummate UI operation interface style.

Support ONVIF 2.4 protocol.

Full HDMI output, support HDMI, VGA, CVBS synchronization output.

With hard disk dormancy and Wake-on-LAN technology, which lower power consumption, improve the stability and prolong the hard disk life.

With hard disk S.M.A.R.T management technology; capacity is unlimited and health status of hard disk can be monitored at any time.

Hard disk dual redundant technology with data backup effectively ensures video security.

Network QOS automatically adjusting the code flow and network transmission strategy ensures the Network transmission reliability.

Plug and play, support P2P function, cloud services and cloud storage is provided.

Supports Iphone、Windows Mobile、Symbian、Andriod、Blackberry


16ch POE port built-in

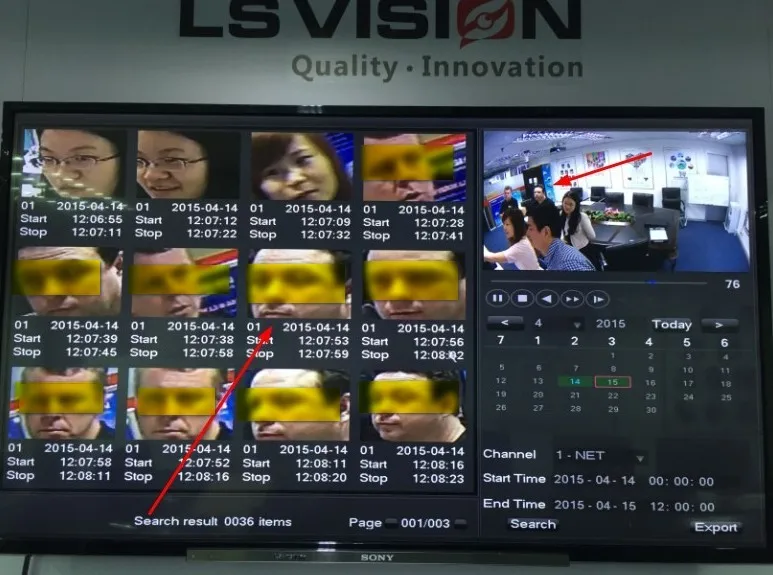

Intelligent features: 1CH face detection, 2ch boundary analysis

Specification
Module
LS-NF5216P
OS
Embedded Linux
master chip
Hi3536
Access Bandwidth
192M
Video&Audio Input
Bidirectional Talk
1 CH(Line in,2Vpp,1Kohms)
IPC Input
(Up to 16CH 1080P@8M)
Video&Audio Output
CVBS Output
1CH,BNC(1.0Vp-p,75ohms)
VGA
1CH,Resolution 1920×1080,1280×1024, 1280×720,1024×768,800×600
HDMI
Standard 1.4a
3840×2160,1920×1080,1280×1024,1280×720,1024×768
Audio Output
1CH,BNC(Line out,2Vpp,300ohms)
Video&Audio Encoding
Audio Compression
G711A
Audio Bit Rate
64Kbps
Video&Audio codes
IP Resolution
Main stream:up to 4096*3072

Sub stream: no more than D1
Video bitrate
Up to 2Mbps D1, 4Mbps 720P, 8Mbps 1080P
Video decoding
H.265/H.264(Up to High Profile Level4.2)
Synchronous Playback
Up to 16CH
Other Function
Bidirectional Talk
Two-way voice intercom function
Motion Detection
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Picture Capture
Local Capture&Web Capture
HDD Interface
SATA
2
ESATA
0
POE
POE Interface
8 port POE
External Interface
Network Interface
1 RJ45 10M/100M/1000M adaptive Ethernet interface
USB
2 USB 2.0 Interfaces
General
Dimensions
405*365*123mm
Weight
3Kg(without HDD)
Power Supply
110V~220V±10% 47Hz~63Hz
Working Temperature
-10℃--+55℃
Working Humidity
10%--90%
Consumption
10W(without HDD and POE)
Applications
