LSVISION H.264 H.265 P2P CCTV Zoom Lens Starlight POE 5MP NVR CMS Software Camera IP with 120DB WDR Audio RS485 SD card port

FOB Reference Price:Get Latest Price
$198.00 - $206.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 10 11 - 100 101 - 300 >300
Est. Time(days) 5 7 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-P6500M
Type:
IP Camera
Style:
Bullet Camera
Sensor:
CMOS
Special Features:
Medium IR-Bullet Camera
Media Processor:
HI3516A+ IMX178
Motorized lens:
3.6-10mm
Resolution:
30fps@5MP(2592 x1944), 60fps@2MP(1920 x 1080)
IR Range:
≤30m
POE:
Support
Compression:
H.265/H.264/MJPEG
Memeory Slot:
SD/SDHC (Max 128GB)
Onvif:
Onvif 2.4
Other functions:
Reset, SD card audio, analog video output, RS485, alarm
Starlight, color image at night:
Support
Technology:
NetWork
Supply Ability
Supply Ability:
3000 Piece/Pieces per Week cms software camera ip
Packaging & Delivery
Packaging Details
1pcs/color box
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 101 - 300 >300
Est. Time(days) 5 7 15 To be negotiated
Key Features

LSVISION H.264 H.265 P2P CCTV Zoom Lens Starlight POE 5MP NVR CMS Software Camera IP with 120DB WDR Audio RS485 SD card port


UP to 5 megapixel resolution(2592×1944)
Max 30fps@5MP(2592×1944),60fps@2MP(1920×1080)
H.265 MainProfile, H.264 Baseline/MainProfile/HighProfile
WDR (120dB)
Day/Night(ICR)&3D DNR&AWB&AGC&BLC
Lens(3.6~10mm),Motorized-lens Optional
Alarm&Audio&RS485 interface
Support mobile phone monitoring and P2P function
PoE function
IP66 rating
Equipped with bracket & junction box

Specification
Model
LS-P6500M cms software camera ip
Camera
Media Processor
High-performance Hisilicon DSP/SONY cmos sensor
Hi3516A+IMX178
Image Sensor
1/1.8" 5MP progressive scan CMOS
Shuttle time
1/5s to 1/50,000s
Min IIIumination
Color:0.1 Lux /F1.2 B/W:0.001 Lux / F1.2;0Lux IR On
Lens
3.6~10mm Optional
Motorized-Lens
Support 3.6~10mm lens optinal with AF
IR Range
Up to 30m
Day&Night
IR cut filter with auto switch
Smart IR /Shake Alarm
Support (Pro Series)
Video Compression
H.265/H.264/MJPEG
Coding standard
H.265 MainProfile, H.264 Baseline/MainProfile/HighProfile,
Audio Compression
G.711a/G.711u/RAW_PCM
Audio Bit Rate
G.711a(8kbps)/G.711u(8kbps)/RAW_PCM(16kbps)
Max Image Size
2592(H)×1944(V)
Stream
Three-Stream
Frame Rate
Main Stream : 30fps @(2592 × 1944),60fps @(1920 × 1080) Sub-stream : 30fps (640 × 480); Third-Stream: 25fps(P)/ 30fps(N) (352 × 288)
Alarm Trigger
Motion detection, tampering alarm, network disconnect, storage exception
Memeory Slot
SD/SDHC (Max 128GB)
Protocols
IPv4/IPv6,RTSP/RTP/RTCP,TCP/UDP,HTTP,DHCP,DNS,FTP,DDNS,PPPoE,SMTP,QOS,Onvif
Onvif
V2.4 Version
Browser
IE(8,9,10,11),Chrome,Firefox,Safaribetc,etc
Software Development Kit
 Linux/Windows C++/C SDK
Audio In
1-channel 3.5mm audio interface MIC IN/Line IN
Audio Out
1-channel 3.5mm audio interface (line level,600Ω)
RS485
Yes (half duplex)
Alarm
1 In/1 Out
Video Out
1Vp-p Composite Output(75Ω/BNC)
Network
1 RJ45 10M/100M adaptive Ethernet port
Reset
A reset button (press and hold 3 seconds valid)
Operating Conditions
-40℃ ~ 60℃,humidty less than 95%
Power Supply
DC12V±10%, PoE (802.3af)
Power Consumption
7W
Weather proof rating
IP66
Dimensions(mm)
φ105×290.5
Weight(kg)
1.2

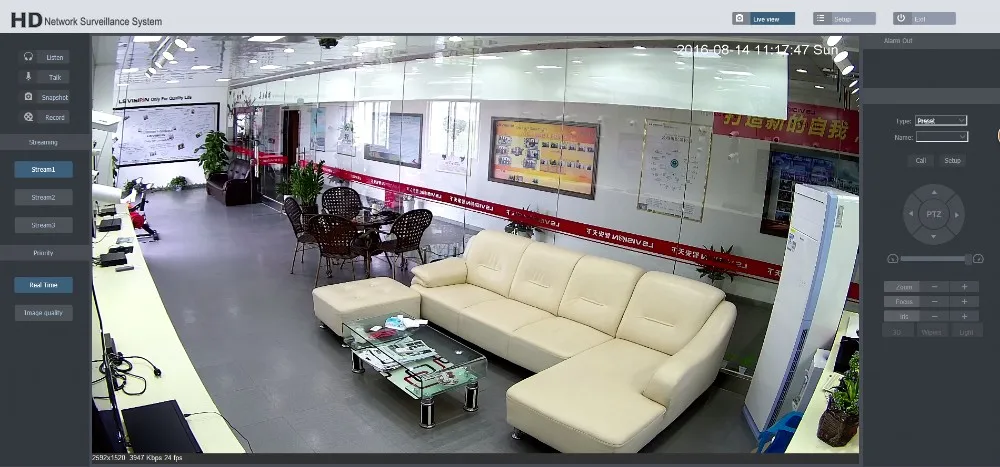

Image Effects
